  11. Corner Chamfer End Mill, 16 mm, Carbide

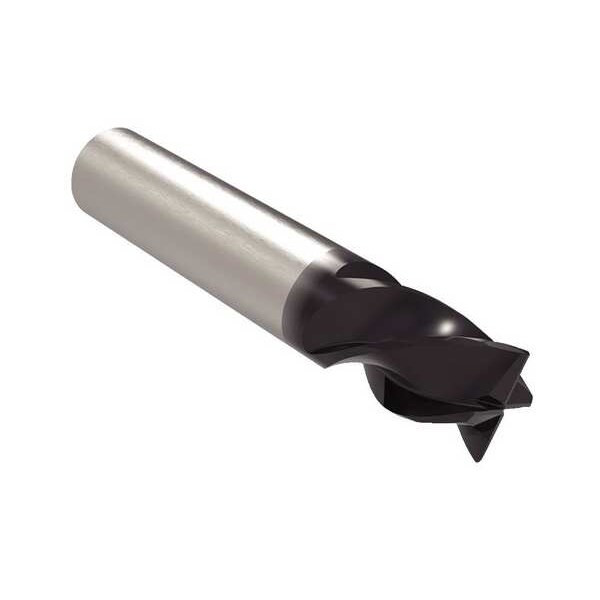

Widia Corner Chamfer End Mill, 16 mm, Carbide 4X0EM16006CCT WS15PE - main

Corner Chamfer End Mill, 16 mm, Carbide

  • Mfr # 4X0EM16006CCT WS15PE

  • Zoro # G002671052

product price: $164.99
/ea
Free Shipping & Returns

Key Features

Number of Flutes
4
Single End/Double End
Single
End Mill Cutting Type
Center Cutting
Shank Dia.
16 mm
Chamfer Width
0.3 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4X0EM16006CCT WS15PE
Zoro #
G002671052
UPC #
-
Country of Origin
Israel

Dimensions

Shank Dia.
16 mm
Chamfer Width
0.3 mm
Overall Length
82 mm
Milling Dia.
16 mm
Length of Cut
18 mm

Details

Number of Flutes
4
Single End/Double End
Single
End Mill Cutting Type
Center Cutting
Cutting Direction
Right Hand
Series
Varimill(TM) Xtreme(TM)
Primary Material Application ISO Code
K, M, P
Coolant Fed
Non-Coolant Through
Helix Angle
30 Degrees
Number of Coolant Holes
0
Max. Helix Angle
39 Degrees
Min. Helix Angle
37 Degrees
Finish - Machining
AlTiN
Drilling Tool Configuration
Individual
End Mill Application
Drilling, Helical Milling, Plunge Milling, Ramping :, Side Milling/Shoulder Milling: Square End, Slotting: Square End, Trochoidal Milling
Material Grade - Machining
WS15PE
End Mill Style
Corner-Chamfer
Flute Type
Spiral
Material - Machining
Carbide
Measurement System
Metric
Item
Corner Chamfer End Mill
Shank Type - Machining
Straight
Primary Material Application
Cast Iron, Stainless Steel, Steel
Chamfer Angle
45 Degrees
List Number
4XNE
Material Applications
Cast Iron, Hardened Materials, High-Temp Alloys, Stainless Steel, Steel
Secondary Material Application
Hardened Steel, Nickel, Titanium
Flute Spacing
Variable
Secondary Material Application ISO Code
H, S

Description

Corner Chamfer End Mill, 16 mm Milling Dia., Carbide, AlTiN, Non-Coolant Through, Straight, Metric, 45 Degrees , 0.3 mm, 18 mm
