  11. Corner Chamfer End Mill, 8 mm, Carbide

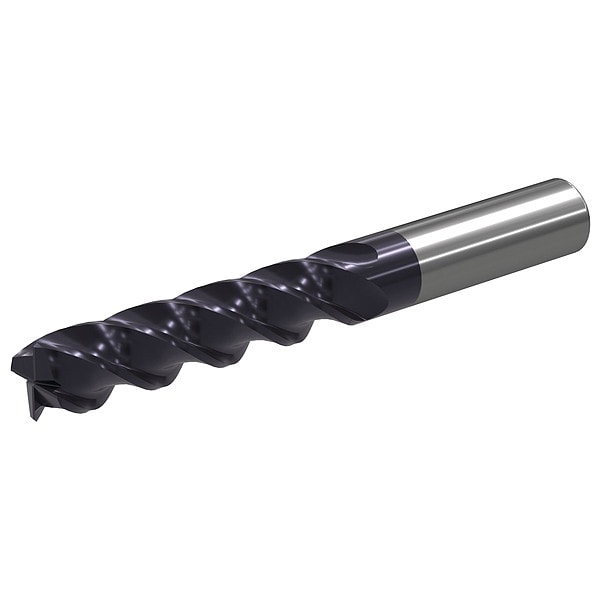

Widia Corner Chamfer End Mill, 8 mm, Carbide W411M08014CAT WU20PE - main

Corner Chamfer End Mill, 8 mm, Carbide

  • Mfr # W411M08014CAT WU20PE

  • Zoro # G705905669

product price: $38.69
/ea

Key Features

Number of Flutes
4
Overall Length
87 mm
Shank Dia.
8 mm
Length of Cut
32 mm
End Mill Style
Corner-Chamfer
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
W411M08014CAT WU20PE
Zoro #
G705905669
UPC #
-
Country of Origin
Viet Nam

Dimensions

Overall Length
87 mm
Shank Dia.
8 mm
Length of Cut
32 mm
Chamfer Width
0.4 mm
Milling Dia.
8 mm

Details

Item
Corner Chamfer End Mill
Number of Flutes
4
End Mill Style
Corner-Chamfer
Single End/Double End
Single
Cutting Direction
Right Hand
Chamfer Angle
45 Degrees
End Mill Cutting Type
Center Cutting
Helix Angle
39 Degrees
List Number
W411
End Mill Application
Blank Ramping, Helical Milling, Shoulder Milling, Square End Side Milling
Spiral Direction
Right Hand
Series
WCE4
Secondary Material Application ISO Code
H, S
Material Applications
Cast Iron, Hardened Material, High-Temperature Alloy, Stainless Steel, Steel
Max. Helix Angle
39 Degrees
Finish - Machining
TiAlN
Primary Material Application ISO Code
K, M, P
Min. Helix Angle
37 Degrees
Primary Material Application
Cast Iron, Stainless Steel, Steel
Flute Type
Spiral
Shank Type - Machining
Straight
Material - Machining
Carbide
Material Grade - Machining
WU20PE
Secondary Material Application
Hardened Material, High-Temperature Alloy
Measurement System
Metric
Drilling Tool Configuration
Individual
Coolant Fed
Non-Coolant Through
Flute Spacing
Variable

Description

Corner Chamfer End Mill, 8 mm Milling Dia., Carbide, TiAlN, Non-Coolant Through, Straight, Metric, 45 Degrees , 0.4 mm, 32 mm
