  11. Corner Radius End Mill, 0.375 in

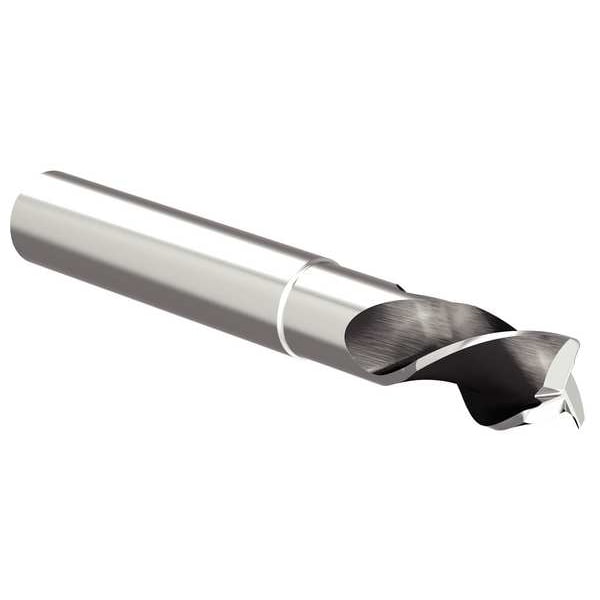

Widia Corner Radius End Mill, 0.375 in 3AN9E10005RET UNCOATED - main

Corner Radius End Mill, 0.375 in

  • Mfr # 3AN9E10005RET UNCOATED

  • Zoro # G002670390

product price: $103.99
/ea
Free Shipping & Returns

Key Features

Number of Flutes
3
Single End/Double End
Single
End Mill Cutting Type
Center Cutting
Shank Dia.
3/8 in
Cutting Direction
Right Hand
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3AN9E10005RET UNCOATED
Zoro #
G002670390
UPC #
-
Country of Origin
Israel

Dimensions

Corner Radius
0.03 in
Shank Dia.
3/8 in
Overall Length
3 in
Milling Dia.
0.375 in
Neck Length
1.25 in
Neck Dia.
0.3525 in
Length of Cut
0.5 in

Details

Number of Flutes
3
Single End/Double End
Single
End Mill Cutting Type
Center Cutting
Cutting Direction
Right Hand
Series
Aluflash
Item
Corner Radius End Mill
Drilling Tool Configuration
Individual
Min. Helix Angle
0 Degrees
Max. Helix Angle
30 Degrees
Material Grade - Machining
Uncoated
Measurement System
Inch
List Number
3AN9
End Mill Application
Drilling, Helical Milling, Plunge Milling, Ramping :, Side Milling/Shoulder Milling: Square End, Slotting: Square End, Trochoidal Milling
End Mill Style
Corner-Radius
Number of Coolant Holes
0
Primary Material Application
Aluminum
Material Applications
Aluminum, Non-Ferrous
Primary Material Application ISO Code
N
Material - Machining
Carbide
Finish - Machining
Uncoated
Coolant Fed
Non-Coolant Through
Flute Type
Spiral
Shank Type - Machining
Straight
Helix Angle
30 Degrees
Flute Spacing
Variable

Description

Corner Radius End Mill, 0.375 in Milling Dia., Carbide, Uncoated, Non-Coolant Through, Straight, Inch, 0.03 in, 0.5 in, 3 in
