  11. Corner Radius End Mill, 0.75 in, Carbide

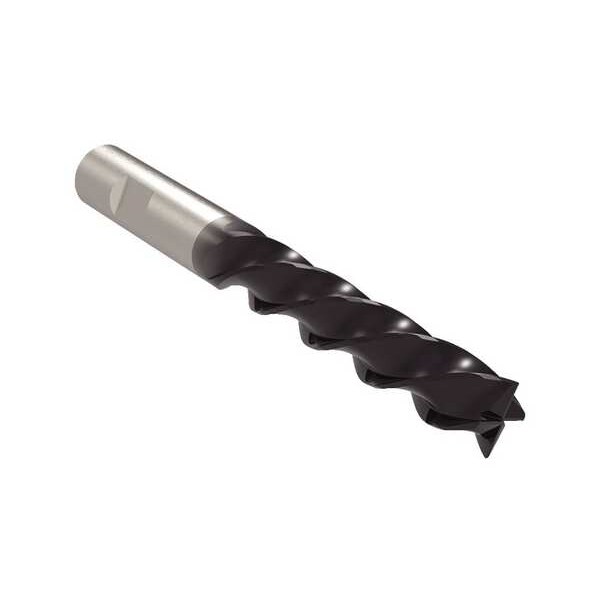

Widia Corner Radius End Mill, 0.75 in, Carbide 4X6EE19007RAW WS15PE - main

Corner Radius End Mill, 0.75 in, Carbide

  • Mfr # 4X6EE19007RAW WS15PE

  • Zoro # G202670480

product price: $533.99
/ea
Free Shipping & Returns

Key Features

Corner Radius
0.015 in
Number of Flutes
4
Single End/Double End
Single
End Mill Cutting Type
Center Cutting
Shank Dia.
3/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4X6EE19007RAW WS15PE
Zoro #
G202670480
UPC #
-
Country of Origin
Israel

Dimensions

Corner Radius
0.015 in
Shank Dia.
3/4 in
Overall Length
6 in
Length of Cut
3 in
Milling Dia.
0.75 in

Details

Number of Flutes
4
Single End/Double End
Single
End Mill Cutting Type
Center Cutting
Number of Coolant Holes
0
Primary Material Application ISO Code
K, M, P
Flute Type
Spiral
Material Grade - Machining
WS15PE
End Mill Application
Drilling, Helical Milling, Plunge Milling, Ramping :, Side Milling/Shoulder Milling: Square End, Slotting: Square End, Trochoidal Milling
Drilling Tool Configuration
Individual
Finish - Machining
AlTiN
Material Applications
Cast Iron, Hardened Materials, High-Temp Alloys, Stainless Steel, Steel
Min. Helix Angle
37 Degrees
Cutting Direction
Right Hand
Measurement System
Inch
Coolant Fed
Non-Coolant Through
List Number
4X6E
Series
Varimill(TM) Xtreme(TM)
Helix Angle
30 Degrees
End Mill Style
Corner-Radius
Material - Machining
Carbide
Item
Corner Radius End Mill
Max. Helix Angle
39 Degrees
Primary Material Application
Cast Iron, Stainless Steel, Steel
Shank Type - Machining
Weldon Flat
Secondary Material Application
Hardened Steel, Nickel, Titanium
Flute Spacing
Variable
Secondary Material Application ISO Code
H, S

Description

Corner Radius End Mill, 0.75 in Milling Dia., Carbide, AlTiN, Non-Coolant Through, Weldon Flat, Inch, 0.015 in, 3 in, 6 in
