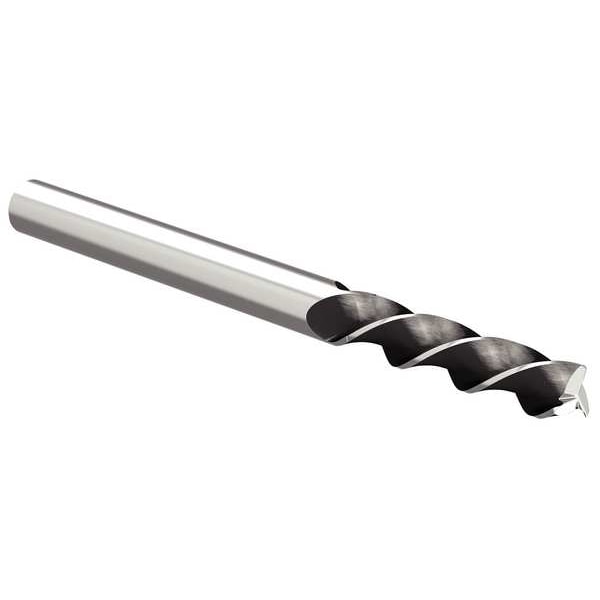

Corner Radius End Mill, 4 mm, Carbide

Name: Corner Radius End Mill, 4 mm, Carbide
Brand: Widia
SKU: G902670810
Price: 37.69 USD
Availability: InStock

$37.69

/ea

Corner Radius

0.5 mm

Number of Flutes

Single End/Double End

Single

End Mill Cutting Type

Center Cutting

Shank Dia.

4 mm

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

Number of Flutes: 3
Single End/Double End: Single
End Mill Cutting Type: Center Cutting
Primary Material Application ISO Code: N
Helix Angle: 30 Degrees
Min. Helix Angle: 0 Degrees
End Mill Application: Drilling, Helical Milling, Plunge Milling, Ramping :, Side Milling/Shoulder Milling: Square End, Slotting: Square End, Trochoidal Milling
Coolant Fed: Non-Coolant Through
Measurement System: Metric
Item: Corner Radius End Mill
Series: Aluflash
Max. Helix Angle: 30 Degrees
End Mill Style: Corner-Radius
Shank Type - Machining: Straight
Material Grade - Machining: Uncoated
Primary Material Application: Aluminum
List Number: 3A09
Finish - Machining: Uncoated
Material - Machining: Carbide
Cutting Direction: Right Hand
Drilling Tool Configuration: Individual
Material Applications: Aluminum, Non-Ferrous
Flute Type: Spiral
Number of Coolant Holes: 0
Flute Spacing: Variable

Corner Radius End Mill, 4 mm Milling Dia., Carbide, Uncoated, Non-Coolant Through, Straight, Metric, 0.5 mm, 12 mm, 63 mm
