  11. Corner Radius End Mill, 8 mm, Carbide

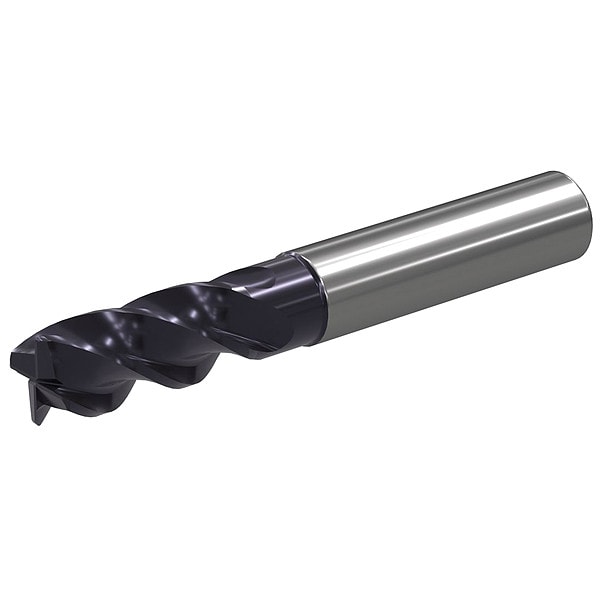

Widia Corner Radius End Mill, 8 mm, Carbide W4N1M08004RET WU20PE - main

Corner Radius End Mill, 8 mm, Carbide

  • Mfr # W4N1M08004RET WU20PE

  • Zoro # G305905939

product price: $37.79
/ea

Key Features

Number of Flutes
4
Overall Length
63 mm
Shank Dia.
8 mm
Length of Cut
19 mm
End Mill Style
Corner-Radius
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
W4N1M08004RET WU20PE
Zoro #
G305905939
UPC #
-
Country of Origin
Viet Nam

Dimensions

Overall Length
63 mm
Shank Dia.
8 mm
Length of Cut
19 mm
Corner Radius
0.5 mm
Shank Length
36 mm
Milling Dia.
8 mm
Neck Dia.
7.52 mm
Neck Length
27 mm

Details

Item
Corner Radius End Mill
Number of Flutes
4
End Mill Style
Corner-Radius
Single End/Double End
Single
List Number
W4N1
End Mill Cutting Type
Center Cutting
Cutting Direction
Right Hand
Series
WCE4
Spiral Direction
Right Hand
End Mill Application
Blank Ramping, Helical Milling, Side Milling, Square End Shoulder Milling, Square End Slotting
Helix Angle
39 Degrees
Secondary Material Application ISO Code
H, S
Measurement System
Metric
Shank Type - Machining
Straight
Material - Machining
Carbide
Min. Helix Angle
37 Degrees
Max. Helix Angle
39 Degrees
Primary Material Application ISO Code
K, M, P
Flute Type
Spiral
Coolant Fed
Non-Coolant Through
Secondary Material Application
Hardened Material, High-Temperature Alloy
Finish - Machining
TiAlN
Drilling Tool Configuration
Individual
Material Applications
Cast Iron, Hardened Material, High-Temperature Alloy, Stainless Steel, Steel
Primary Material Application
Cast Iron, Stainless Steel, Steel
Material Grade - Machining
WU20PE
Flute Spacing
Variable

Description

Corner Radius End Mill, 8 mm Milling Dia., Carbide, TiAlN, Non-Coolant Through, Straight, Metric, 0.5 mm, 19 mm, 63 mm
