  9. Diamond Milling Insert, 6.45mm, Carbide

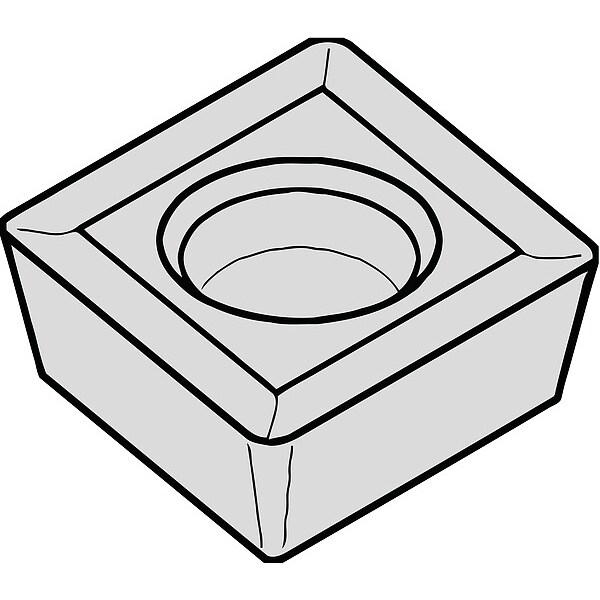

Widia Diamond Milling Insert, 6.45mm, Carbide CPNT2151T - main

Diamond Milling Insert, 6.45mm, Carbide

  • Mfr # CPNT2151T

  • Zoro # G3784232

product price: $11.99
/ea
Sold in multiples of 10 for $119.90

Key Features

Mounting Hole Dia.
0.1102 in
Series
M16
Inscribed Circle
1/4 in
Grade
WP35CM
ISO Number
CPNT060204T
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CPNT2151T
Zoro #
G3784232
UPC #
4050841893053
Country of Origin
Germany

Dimensions

Mounting Hole Dia.
0.1102 in
Insert Thickness
0.0937"
Insert Size
2151
Thickness
0.0937 in
Through Hole Inside Dia.
0.1102 in
Corner Radius
1/64 in
Cutting Edge Length
6.45mm

Details

Series
M16
Inscribed Circle
1/4 in
Grade
WP35CM
ISO Number
CPNT060204T
Cutting Direction
Neutral
For Use With
M16 Series Slotting Mills
Insert Style
CPNT
Item
Diamond Milling Insert
Insert Shape
Diamond
Mounting Style
Taper Screw
Chip-Breaker
Yes
Measurement System
Fractional Inch
Secondary Material Application
Stainless Steel
Insert Holding Type
Taper Screw
Number of Cutting Edges
2
Chip-Breaker Style
On One Side
Shape
Rhombic
Coating Process
CVD
Finish - Machining
Al2O3
Manufacturer Grade
WP35CM
Included Angle
80 Degrees
Primary Material Application
Cast Iron, Steel
Hole Type
40 Degrees to 60 Degrees Countersink Hole
Primary Material Application ISO Code
K, P
ANSI Code
CPNT2151T
Material - Machining
Carbide
Secondary Material Application ISO Code
M
Clearance Angle
11 Degrees

Description

Diamond Milling Insert, Inscribed Circle 1/4 in, CPNT2151T, On One Side, 11 Degrees
