  11. End Mill, 0.2500 in. Milling Dia., 4S

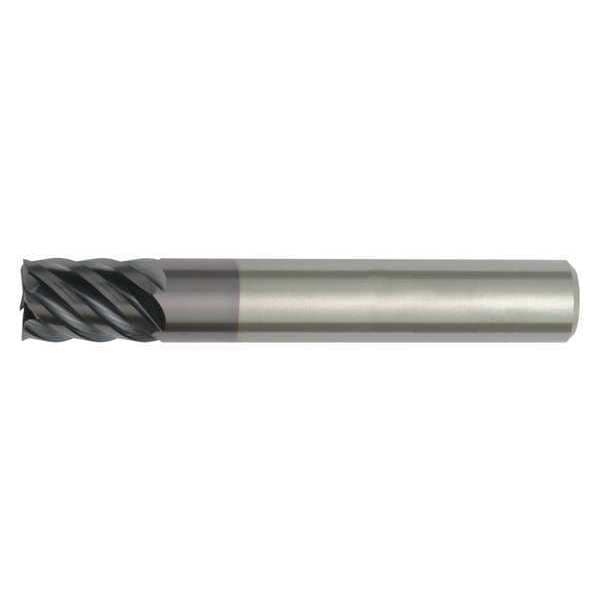

Widia End Mill, 0.2500 in. Milling Dia., 4S TC4S0707002 - main

End Mill, 0.2500 in. Milling Dia., 4S

  • Mfr # TC4S0707002

  • Zoro # G3727529

product price: $51.89
/ea

Key Features

Dimension Type
Decimal inch
Milling Diameter
1/4"
End Mill Material
Carbide
Number of Flutes
6
Length of Cut
0.75 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TC4S0707002
Zoro #
G3727529
UPC #
-
Country of Origin
United States

Dimensions

Dimension Type
Decimal inch
Milling Diameter
1/4"
Length of Cut
0.75 in
Shank Dia.
1/4 in
Overall Length
2 1/2 in
Milling Dia.
0.25 in

Details

End Mill Material
Carbide
Number of Flutes
6
Single End/Double End
Single
End Mill Cutting Type
Center Cutting
Grade
TICN-CT
Shank Type
Straight
Stainless (M) Compatibility
Yes
Cutting Direction
Right Hand
Helix Angle
45 Degrees
Finish
Ticn
Hardened (H) Compatibility
Yes
List Number
4S07
Cast Iron (K) Compatibility
Yes
End Mill Style
Square
Steel (P) Compatibility
Yes
End Mill Application
Finishing
Super Alloy (S) Compatibility
Yes
Item
Square End Mill
Non Ferrous (N) Compatibility
No
Material - Machining
Carbide
Finish - Machining
TiCN
Measurement System
Inch
Material Grade - Machining
TiCN-CT
Drilling Tool Configuration
Individual
Shank Type - Machining
Straight
Coolant Fed
Non-Coolant Through
Primary Material Application ISO Code
H, K, M, P, S
Primary Material Application
Cast Iron, Hardened Steel, Nickel, Stainless Steel, Steel, Titanium
Series
Finishers
Flute Spacing
Fixed
Max. Helix Angle
45 Degrees
Flute Type
Spiral

Description

Square End Mill, 0.25 in Milling Dia., Carbide, TiCN, Non-Coolant Through, Straight, Length of Cut 0.75 in, Overall Length 2 1/2 in, Shank Dia. 1/4 in, Neck Dia. Not Applicable
