  11. End Mill, 16.00mm Milling Dia., 6N06

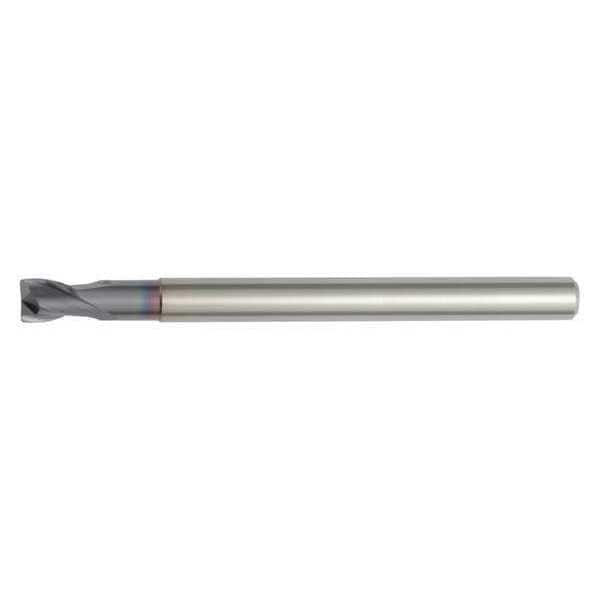

Widia End Mill, 16.00mm Milling Dia., 6N06 75N204022RT - main

End Mill, 16.00mm Milling Dia., 6N06

  • Mfr # 75N204022RT

  • Zoro # G3816158

product price: $84.69
/ea
Free Shipping & Returns

Key Features

Number of Flutes
3
Overall Length
75 mm
Shank Dia.
6 mm
Length of Cut
4 mm
End Mill Style
Corner-Radius
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
75N204022RT
Zoro #
G3816158
UPC #
-
Country of Origin
Israel

Dimensions

Overall Length
75 mm
Shank Dia.
6 mm
Length of Cut
4 mm
Dimension Type
Metric
Corner Radius
0.3 mm
Neck Length
12 mm
Milling Dia.
4 mm
Milling Diameter
4.00mm
Neck Dia.
3.7 mm

Details

Item
Corner Radius End Mill
Number of Flutes
3
End Mill Style
Corner-Radius
Single End/Double End
Single
List Number
75N2
Cutting Direction
Right Hand
Shank Type
Straight
End Mill Cutting Type
Center Cutting
Non Ferrous (N) Compatibility
No
Hardened (H) Compatibility
Yes
Cast Iron (K) Compatibility
No
End Mill Application
Finishing
Super Alloy (S) Compatibility
No
Finish
TiAlN
Stainless (M) Compatibility
No
End Mill Material
Carbide
Steel (P) Compatibility
Yes
Helix Angle
30 Degrees
Grade
TIALN-RT1
Material - Machining
Carbide
Finish - Machining
TiAlN
Measurement System
Metric
Shank Type - Machining
Straight
Drilling Tool Configuration
Individual
Material Grade - Machining
TiAlN-RT1
Primary Material Application ISO Code
H
Primary Material Application
Hardened Steel
Coolant Fed
Non-Coolant Through
Series
Vision Plus
Secondary Material Application
Steel
Flute Type
Spiral
Max. Helix Angle
30 Degrees
Secondary Material Application ISO Code
P
Flute Spacing
Fixed

Description

Corner Radius End Mill, 4 mm Milling Dia., Carbide, TiAlN, Non-Coolant Through, Straight, Metric, 0.3 mm, 4 mm, 75 mm
