  11. End Mill, 3.00mm Milling Dia., J111

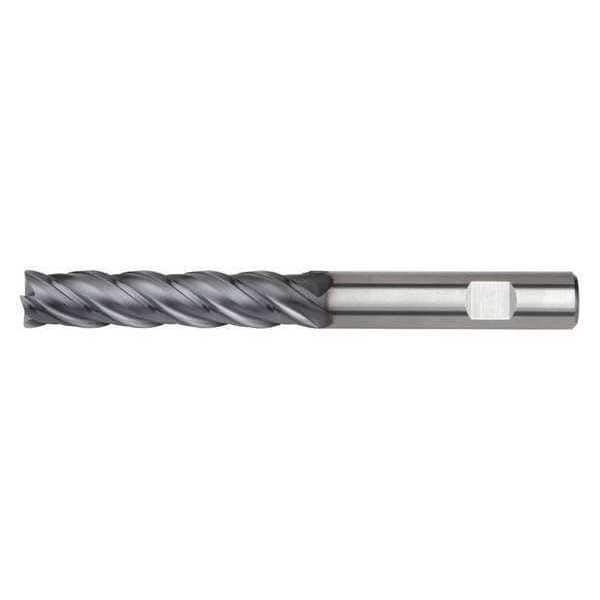

Widia End Mill, 3.00mm Milling Dia., J111 472712005LW - main

End Mill, 3.00mm Milling Dia., J111

  • Mfr # 472712005LW

  • Zoro # G3909897

product price: $181.99
/ea
Free Shipping & Returns

Key Features

Number of Flutes
4
Overall Length
125 mm
Shank Dia.
12 mm
Length of Cut
76 mm
End Mill Style
Corner-Chamfer
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
472712005LW
Zoro #
G3909897
UPC #
-
Country of Origin
Israel

Dimensions

Overall Length
125 mm
Shank Dia.
12 mm
Length of Cut
76 mm
Milling Diameter
12.00mm
Dimension Type
Metric
Corner Radius
0.30mm
Milling Dia.
12 mm
Chamfer Width
0.5 mm

Details

Item
Cor Chamf End Mill,0.30mm CR,12.00mm Dia
Number of Flutes
4
End Mill Style
Corner-Chamfer
Single End/Double End
Single
Finish
TiAlN
Hardened (H) Compatibility
Yes
Grade
TIALN-LW
End Mill Application
Roughing/Finishing
Cast Iron (K) Compatibility
Yes
End Mill Cutting Type
Center Cutting
End Mill Material
Carbide
Helix Angle
38 Degrees
Super Alloy (S) Compatibility
Yes
Non Ferrous (N) Compatibility
No
Shank Type
Weldon
List Number
4727
Cutting Direction
Right Hand
Stainless (M) Compatibility
Yes
Steel (P) Compatibility
Yes
Measurement System
Metric
Material - Machining
Carbide
Finish - Machining
TiAlN
Drilling Tool Configuration
Individual
Shank Type - Machining
Weldon Flat
Material Grade - Machining
TiAlN-LW
Secondary Material Application ISO Code
K
Primary Material Application
Hardened Steel, Nickel, Stainless Steel, Steel, Titanium
Primary Material Application ISO Code
H, M, P, S
Secondary Material Application
Cast Iron
Series
VariMill I
Max. Helix Angle
38 Degrees
Flute Type
Spiral
Flute Spacing
Variable

Description

Corner Chamfer End Mill, 12 mm Milling Dia., Carbide, TiAlN, Weldon Flat, Metric, 0.5 mm, 76 mm
