  11. End Mill, 6.00mm Milling Dia., D518

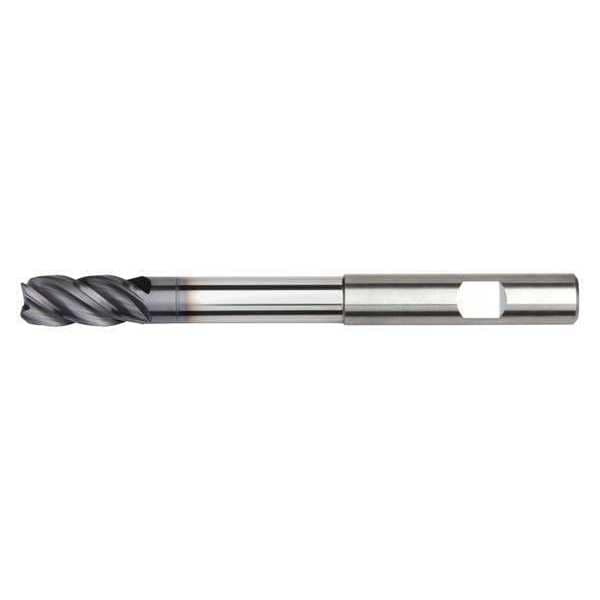

Widia End Mill, 6.00mm Milling Dia., D518 47N612005LW - main

End Mill, 6.00mm Milling Dia., D518

  • Mfr # 47N612005LW

  • Zoro # G3909145

product price: $157.99
/ea
Free Shipping & Returns

Key Features

Number of Flutes
6
Overall Length
125 mm
Shank Dia.
12 mm
Length of Cut
24 mm
End Mill Style
Corner-Chamfer
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
47N612005LW
Zoro #
G3909145
UPC #
-
Country of Origin
Israel

Dimensions

Overall Length
125 mm
Shank Dia.
12 mm
Length of Cut
24 mm
Neck Length
49.00 mm
Dimension Type
Metric
Milling Diameter
12.00mm
Milling Dia.
12 mm
Chamfer Width
0.5 mm

Details

Item
End Mill,6.00mm Dia,13.00mm Cut,Carbide
Number of Flutes
6
End Mill Style
Corner-Chamfer
Single End/Double End
Single
Helix Angle
38 Degrees
Finish
TiAlN
Stainless (M) Compatibility
Yes
Shank Type
Weldon
Non Ferrous (N) Compatibility
No
Super Alloy (S) Compatibility
Yes
End Mill Application
Roughing/Finishing
Hardened (H) Compatibility
Yes
Grade
TIALN-LW
End Mill Material
Carbide
List Number
47N6
Steel (P) Compatibility
Yes
End Mill Cutting Type
Center Cutting
Cast Iron (K) Compatibility
Yes
Cutting Direction
Right Hand
Material - Machining
Carbide
Finish - Machining
TiAlN
Measurement System
Metric
Drilling Tool Configuration
Individual
Shank Type - Machining
Weldon Flat
Material Grade - Machining
TiAlN-LW
Secondary Material Application ISO Code
M
Secondary Material Application
Stainless Steel
Primary Material Application
Cast Iron, Hardened Steel, Nickel, Steel, Titanium
Primary Material Application ISO Code
H, K, P, S
Series
VariMill I

Description

Corner Chamfer End Mill, 12 mm Milling Dia., Carbide, Weldon Flat, Metric, 0.5 mm, 24 mm
