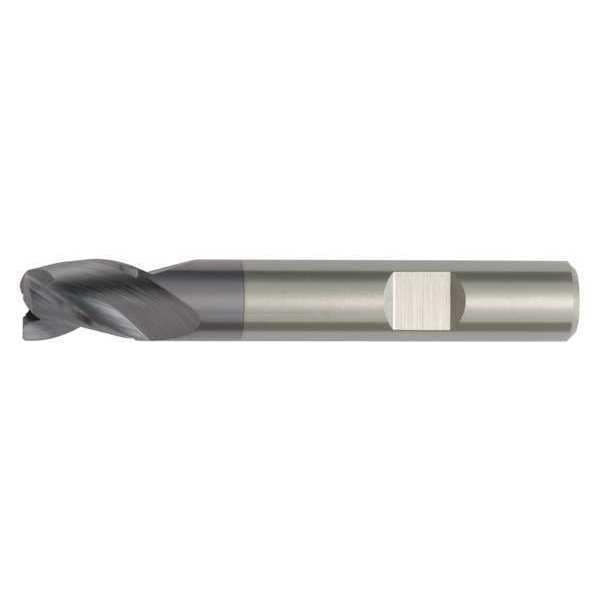

Widia End Mill, 7.00mm Milling Dia., 4778 DC0303002LW - main

End Mill, 7.00mm Milling Dia., 4778

  • Mfr # DC0303002LW

  • Zoro # G3899327

product price: $46.79
/ea

Key Features

Measurement System
Metric
Milling Diameter
3.00mm
Overall Length
50 mm
Number of Flutes
4
End Mill Style
Corner-Radius
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DC0303002LW
Zoro #
G3899327
UPC #
-
Country of Origin
Israel

Dimensions

Milling Diameter
3.00mm
Overall Length
50 mm
Length of Cut
4 mm
Dimension Type
Metric
Corner Radius
0.25 mm
Milling Dia.
3 mm
Shank Dia.
6 mm

Details

Measurement System
Metric
Number of Flutes
4
End Mill Style
Corner-Radius
Finish
TiAlN
End Mill Cutting Type
Center Cutting
Cutting Direction
Right Hand
Hardened (H) Compatibility
Yes
List Number
DC03
Cast Iron (K) Compatibility
Yes
Shank Type
Weldon
Non Ferrous (N) Compatibility
No
Single End/Double End
Single
Helix Angle
35 Degrees
Grade
TIALN-LW
End Mill Application
Finishing
Steel (P) Compatibility
Yes
End Mill Material
Carbide
Stainless (M) Compatibility
Yes
Item
Corner Radius End Mill
Super Alloy (S) Compatibility
Yes
Finish - Machining
TiAlN
Material - Machining
Carbide
Material Grade - Machining
TiAlN-LW
Drilling Tool Configuration
Individual
Shank Type - Machining
Weldon Flat
Primary Material Application ISO Code
H, K, M, P, S
Primary Material Application
Cast Iron, Hardened Steel, Nickel, Stainless Steel, Steel, Titanium
Coolant Fed
Non-Coolant Through
Series
Finishers
Flute Type
Spiral
Max. Helix Angle
35 Degrees
Flute Spacing
Fixed

Description

Corner Radius End Mill, 3 mm Milling Dia., Carbide, TiAlN, Non-Coolant Through, Weldon Flat, Metric, 0.25 mm, 4 mm, 50 mm
