  11. End Mill, 8.00mm Milling Dia., D001/D011

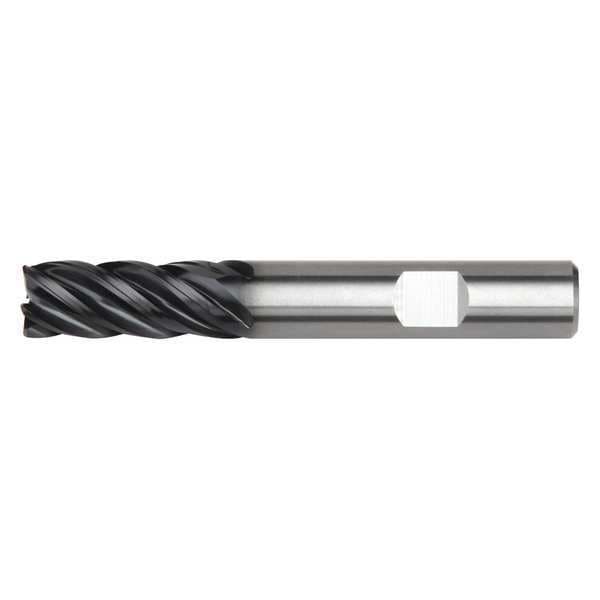

Widia End Mill, 8.00mm Milling Dia., D001/D011 577C12005MW - main

End Mill, 8.00mm Milling Dia., D001/D011

  • Mfr # 577C12005MW

  • Zoro # G3905940

product price: $122.99
/ea
Free Shipping & Returns

Key Features

Measurement System
Metric
Overall Length
83 mm
Milling Diameter
12.00mm
Number of Flutes
2
End Mill Style
Corner-Radius
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
577C12005MW
Zoro #
G3905940
UPC #
-
Country of Origin
Israel

Dimensions

Overall Length
83 mm
Milling Diameter
12.00mm
Length of Cut
26 mm
Milling Dia.
12 mm
Shank Dia.
12 mm
Corner Radius
0.75 mm
Dimension Type
Metric

Details

Measurement System
Metric
Number of Flutes
2
End Mill Style
Corner-Radius
Finish
AlTiN
End Mill Cutting Type
Center Cutting
End Mill Material
Carbide
Non Ferrous (N) Compatibility
Yes
Steel (P) Compatibility
Yes
Cutting Direction
Right Hand
Grade
ALTIN-MW
Stainless (M) Compatibility
Yes
Hardened (H) Compatibility
Yes
Single End/Double End
Single
Shank Type
Weldon
Super Alloy (S) Compatibility
Yes
List Number
577C
End Mill Application
Finishing
Item
CR End Mill,0.75mm CR,12.00mm Dia
Cast Iron (K) Compatibility
Yes
Helix Angle
38 Degrees
Material - Machining
Carbide
Finish - Machining
AlTiN
Material Grade - Machining
AlTiN-MW
Shank Type - Machining
Weldon Flat
Drilling Tool Configuration
Individual
Primary Material Application
Cast Iron, Hardened Steel, Stainless Steel, Steel
Primary Material Application ISO Code
H, K, M, P
Coolant Fed
Non-Coolant Through
Series
VariMill II(TM)
Max. Helix Angle
38 Degrees

Description

Corner Radius End Mill, 12 mm Milling Dia., Carbide, Non-Coolant Through, Weldon Flat, Metric, 0.75 mm, 26 mm, 83 mm
