  11. End Mill, 9.00mm Milling Dia., D518

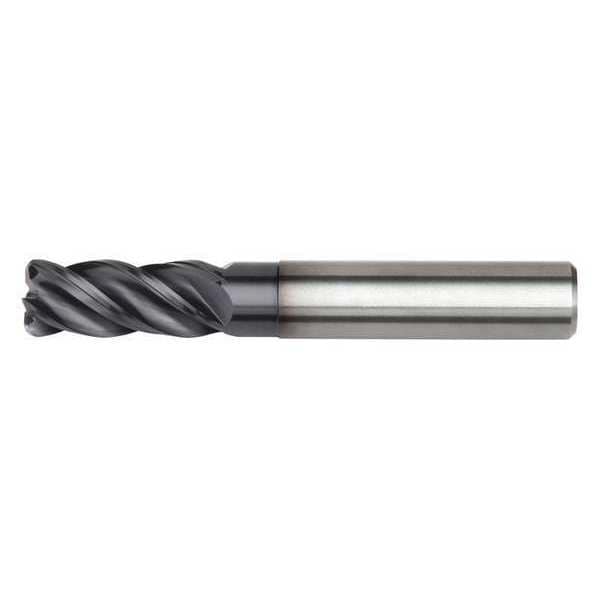

Widia End Mill, 9.00mm Milling Dia., D518 47N706022LT - main

End Mill, 9.00mm Milling Dia., D518

  • Mfr # 47N706022LT

  • Zoro # G3909005

product price: $49.59
/ea

Key Features

Dimension Type
Metric
Milling Diameter
6.00mm
End Mill Material
Carbide
Number of Flutes
4
Length of Cut
13 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
47N706022LT
Zoro #
G3909005
UPC #
-
Country of Origin
Israel

Dimensions

Dimension Type
Metric
Milling Diameter
6.00mm
Length of Cut
13 mm
Shank Dia.
6 mm
Overall Length
57 mm
Corner Radius
1.5 mm
Neck Length
21 mm
Milling Dia.
6 mm
Neck Dia.
5.5 mm

Details

End Mill Material
Carbide
Number of Flutes
4
Single End/Double End
Single
End Mill Cutting Type
Center Cutting
Grade
TIALN-LT
Super Alloy (S) Compatibility
Yes
End Mill Style
Corner-Radius
Non Ferrous (N) Compatibility
No
End Mill Application
Finishing
List Number
47N7
Item
CR End Mill,1.50mm CR,6.00mm Dia,Carbide
Steel (P) Compatibility
Yes
Stainless (M) Compatibility
Yes
Hardened (H) Compatibility
Yes
Cast Iron (K) Compatibility
Yes
Helix Angle
38 Degrees
Finish
TiAlN
Cutting Direction
Right Hand
Shank Type
Straight
Material - Machining
Carbide
Finish - Machining
TiAlN
Measurement System
Metric
Material Grade - Machining
TiAlN-LT
Shank Type - Machining
Straight
Drilling Tool Configuration
Individual
Primary Material Application ISO Code
H, M, P
Primary Material Application
Hardened Steel, Stainless Steel, Steel
Coolant Fed
Non-Coolant Through
Series
VariMill I(TM)
Max. Helix Angle
38 Degrees
Flute Type
Spiral
Secondary Material Application
Cast Iron, Nickel, Titanium
Secondary Material Application ISO Code
K, S
Flute Spacing
Variable

Description

Corner Radius End Mill, 6 mm Milling Dia., Carbide, TiAlN, Non-Coolant Through, Straight, Metric, 1.5 mm, 13 mm, 57 mm
