  11. End Mill, AlTiN, 0.5000 in Millng Dia, 5VNC

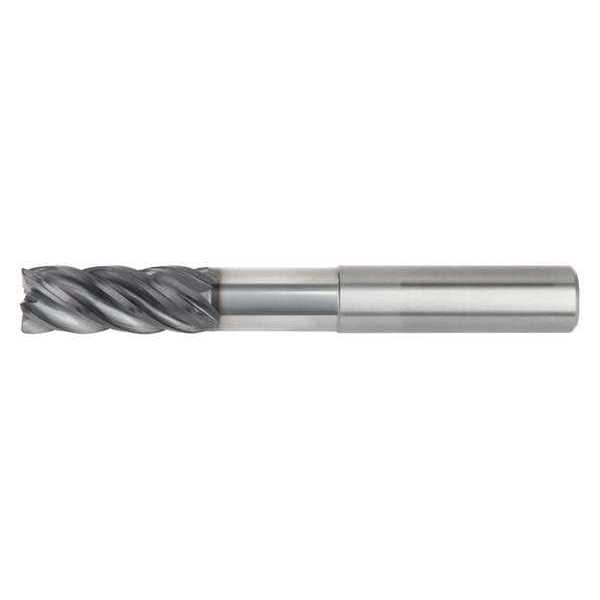

Widia End Mill, AlTiN, 0.5000 in Millng Dia, 5VNC 5VNC13005BW - main

End Mill, AlTiN, 0.5000 in Millng Dia, 5VNC

  • Mfr # 5VNC13005BW

  • Zoro # G3922156

product price: $163.99
/ea
Free Shipping & Returns

Key Features

Measurement System
Inch
Overall Length
4 in
Milling Diameter
1/2"
Number of Flutes
5
End Mill Style
Corner-Radius
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5VNC13005BW
Zoro #
G3922156
UPC #
-
Country of Origin
Israel

Dimensions

Overall Length
4 in
Milling Diameter
1/2"
Length of Cut
1.25 in
Shank Dia.
1/2 in
Neck Length
1 in
Corner Radius
0.03 in
Dimension Type
Decimal inch
Milling Dia.
0.5 in
Neck Dia.
0.47 in

Details

Measurement System
Inch
Number of Flutes
5
End Mill Style
Corner-Radius
Finish
AlTiN
End Mill Cutting Type
Center Cutting
Stainless (M) Compatibility
Yes
Steel (P) Compatibility
Yes
Hardened (H) Compatibility
Yes
Item
Corner Radius End Mill
End Mill Material
Carbide
Cutting Direction
Right Hand
Cast Iron (K) Compatibility
Yes
Shank Type
Straight
Single End/Double End
Single
Grade
WP15PE
Non Ferrous (N) Compatibility
No
Helix Angle
38 Degrees
List Number
5VNC
Super Alloy (S) Compatibility
Yes
End Mill Application
Finishing
Material - Machining
Carbide
Finish - Machining
AlTiN
Material Grade - Machining
WP15PE
Shank Type - Machining
Weldon Flat
Drilling Tool Configuration
Individual
Primary Material Application ISO Code
K, M
Primary Material Application
Cast Iron, Stainless Steel
Coolant Fed
Non-Coolant Through
Flute Type
Spiral
Series
VariMill II(TM)
Max. Helix Angle
38 Degrees
Flute Spacing
Variable
Secondary Material Application
Hardened Steel, Nickel, Steel, Titanium
Secondary Material Application ISO Code
H, P, S

Description

Corner Radius End Mill, 0.5 in Milling Dia., Carbide, AlTiN, Non-Coolant Through, Weldon Flat, Inch, 0.03 in, 1.25 in, 4 in
