Shop WIDIA

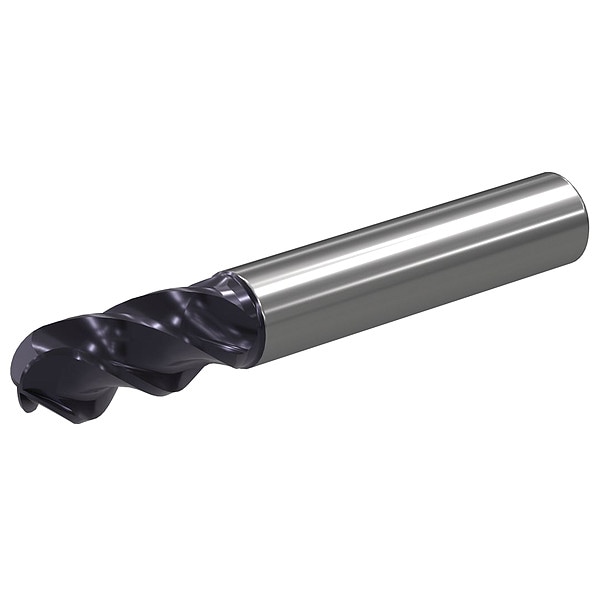

End Mill, Carbide, 92.00 mm L

  • Mfr # W4NBM16008RBT WU20PE

  • Zoro # G005905383

product price:
$
201.99
/ea
Free Shipping & Returns

Key Features

Number of Flutes
4
Length of Cut
32 mm
End Mill Cutting Type
Center Cutting
Shank Dia.
16 mm
Helix Angle
38 Degrees
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
W4NBM16008RBT WU20PE
Zoro #
G005905383
UPC #
-
Country of Origin
Israel

Dimensions

Length of Cut
32 mm
Shank Dia.
16 mm
Overall Length
92 mm
Milling Dia.
16 mm
Neck Dia.
15.4 mm
Wire Rope Length
92 mm

Details

Number of Flutes
4
End Mill Cutting Type
Center Cutting
Helix Angle
38 Degrees
End Mill Application
3D Profiling, Ball Nose Slotting, Blank Ramping, Helical Milling, Shoulder Milling, Square End Side Milling
Series
WCE4
List Number
WCE4
Cutting Direction
Right Hand
End Mill Style
Ball Nose
Item
End Mill
Chip-Breaker
Chip-Breaker Not Included
Primary Material Application ISO Code
K, M, P
Finish - Machining
TiAlN
Secondary Material Application ISO Code
H, S
Measurement System
Metric
Material Grade - Machining
WU20PE
Coolant Fed
Non-Coolant Through
Drilling Tool Configuration
Individual
Secondary Material Application
Hardened Material, High-Temperature Alloy
Primary Material Application
Cast Iron, Stainless Steel, Steel
Spiral Direction
Right Hand
Material - Machining
Carbide
Material Applications
Cast Iron, Hardened Material, High-Temperature Alloy, Stainless Steel, Steel
Shank Type - Machining
Straight

Description

End Mill, 16 mm Milling Dia., Carbide, TiAlN, Non-Coolant Through
