  11. End Mill, TiCN, 0.1875 in Milling Dia, 4C03

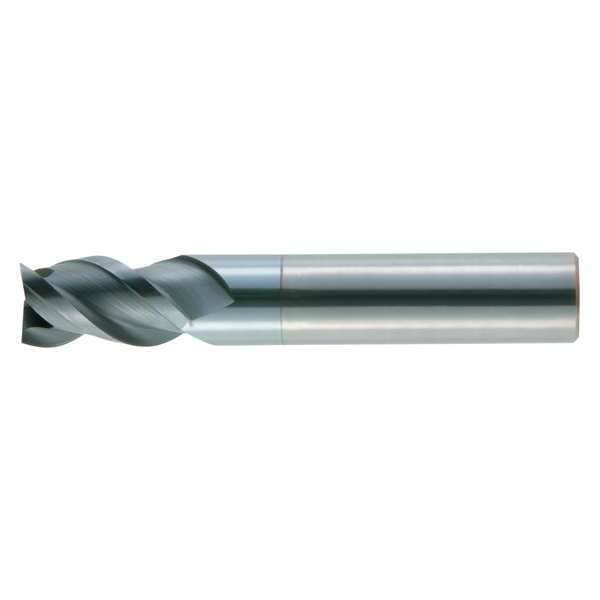

Widia End Mill, TiCN, 0.1875 in Milling Dia, 4C03 TC4C0305000A - main

End Mill, TiCN, 0.1875 in Milling Dia, 4C03

  • Mfr # TC4C0305000A

  • Zoro # G3834665

product price: $42.29
/ea

Key Features

Measurement System
Inch
Overall Length
2 in
Milling Diameter
3/16"
Number of Flutes
3
End Mill Style
Corner-Radius
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TC4C0305000A
Zoro #
G3834665
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
2 in
Milling Diameter
3/16"
Length of Cut
0.625 in
Shank Dia.
3/16 in
Dimension Type
Decimal inch
Corner Radius
0.01 in
Milling Dia.
0.1875 in

Details

Measurement System
Inch
Number of Flutes
3
End Mill Style
Corner-Radius
Finish
Ticn
End Mill Cutting Type
Center Cutting
End Mill Material
Carbide
End Mill Application
Finishing
Hardened (H) Compatibility
Yes
Single End/Double End
Single
Item
Corner Radius End Mill
Grade
TICN-CT
Cutting Direction
Right Hand
Stainless (M) Compatibility
Yes
Steel (P) Compatibility
Yes
Non Ferrous (N) Compatibility
No
Helix Angle
35 Degrees
Shank Type
Straight
Super Alloy (S) Compatibility
Yes
List Number
4C03
Cast Iron (K) Compatibility
Yes
Material - Machining
Carbide
Finish - Machining
TiCN
Shank Type - Machining
Straight
Material Grade - Machining
TiCN-CT
Drilling Tool Configuration
Individual
Primary Material Application
Cast Iron, Hardened Steel, Nickel, Stainless Steel, Steel, Titanium
Primary Material Application ISO Code
H, K, M, P, S
Coolant Fed
Non-Coolant Through
Series
Finishers
Max. Helix Angle
35 Degrees

Description

Corner Radius End Mill, 0.1875 in Milling Dia., Carbide, Non-Coolant Through, Straight, Inch, 0.01 in, 0.625 in, 2 in
