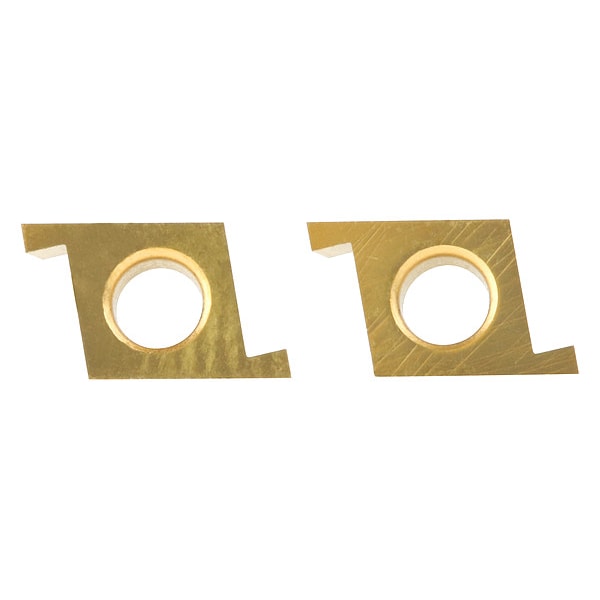

Widia Grooving/Parting Insert, CDG, Carbide CDG50302R - main

Grooving/Parting Insert, CDG, Carbide

  • Mfr # CDG50302R

  • Zoro # G3600105

product price: $30.69
/ea
Sold in multiples of 5 for $153.45

Key Features

Style
Small Hole Boring Positive Inserts
Width
0.0300 in
Chip-Breaker
No
Grade
CG5
Cutting Direction
Right Hand
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CDG50302R
Zoro #
G3600105
UPC #
4021169354557
Country of Origin
United States

Dimensions

Width
0.0300 in
Insert Size
5
Max. Grooving Width
0.0300 in
Seat Size
5
Depth of Cut
0.0400 in
Thickness
0.0500 in

Details

Item
Parting and Grooving Insert
Style
Small Hole Boring Positive Inserts
Chip-Breaker
No
Grade
CG5
Cutting Direction
Right Hand
Lead Angle
15 Degrees
Application
Grooving
Mounting Style
Taper Screw
ISO Number
CDG50302R
No. of Edges
2
Insert Style
CDG
Manufacturer Grade
CG5
Primary Material Application ISO Code
M, N, P, S
Clearance Angle
15 Degrees
Primary Material Application
Aluminum, Brass, Bronze, Copper, Magnesium, Nickel, Stainless Steel, Steel, Titanium
Material - Machining
Carbide
Coating Process
PVD
Feed Type
High
Secondary Material Application ISO Code
K
Inscribed Circle
5/32 in
Finish - Machining
TiN
ANSI Code
CDG50302R
Secondary Material Application
Cast Iron
Included Angle
80 Degrees
Measurement System
Fractional Inch
Number of Cutting Edges
2
Cutting Application
Grooving

Description

Parting and Grooving Insert, Right Hand, Max. Grooving Width 0.0300 in, ANSI Code CDG50302R, Clearance Angle 15 Degrees , Coating Process PVD
