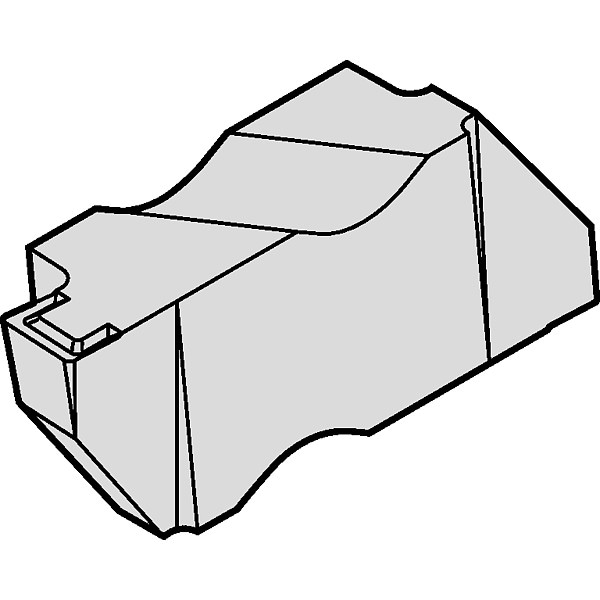

Widia Grooving/Parting Insert, NG-K, Carbide NG2M080RK - main

Grooving/Parting Insert, NG-K, Carbide

  • Mfr # NG2M080RK

  • Zoro # G3599712

product price: $25.49
/ea
Sold in multiples of 5 for $127.45

Key Features

Style
NG-K
Insert Seat Size
2
Width
3.84mm
Chip-Breaker
Yes
Grade
TN6010
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NG2M080RK
Zoro #
G3599712
UPC #
4021169754715
Country of Origin
United States

Dimensions

Insert Seat Size
2
Width
3.84mm
Corner Radius
0.13mm
Insert Size
2
Max. Grooving Width
0.80mm
Seat Size
2
Thickness
5.56mm
Depth of Cut
1.27mm

Details

Item
Parting and Grooving Insert
Style
NG-K
Chip-Breaker
Yes
Grade
TN6010
Cutting Direction
Right Hand
No. of Edges
2
Rake
10 Degrees
Application
Grooving
Mounting Style
Notch
Coating
ALOX-SN
Lead Angle
11 Degrees
ISO Number
NG2M080RK
Insert Style
NG-K
Measurement System
Metric
Primary Material Application ISO Code
K, M, N, P, S
Secondary Material Application ISO Code
H
Material - Machining
Carbide
Coating Process
PVD
ANSI Code
NG2M080RK
Chip-Breaker Code
K
Chip-Breaker Style
Double Sided
Hole Type
No Hole
Secondary Material Application
Hardened Steel
Number of Cutting Edges
2
Manufacturer Grade
TN6010
Cutting Application
Grooving
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Magnesium, Nickel, Stainless Steel, Steel, Titanium
Clearance Angle
11 Degrees

Description

Parting and Grooving Insert, Right Hand, Max. Grooving Width 0.80mm, ANSI Code NG2M080RK, Chip-Breaker Code K, Chip-Breaker Style Double Sided, Clearance Angle 11 Degrees , Coating Process PVD
