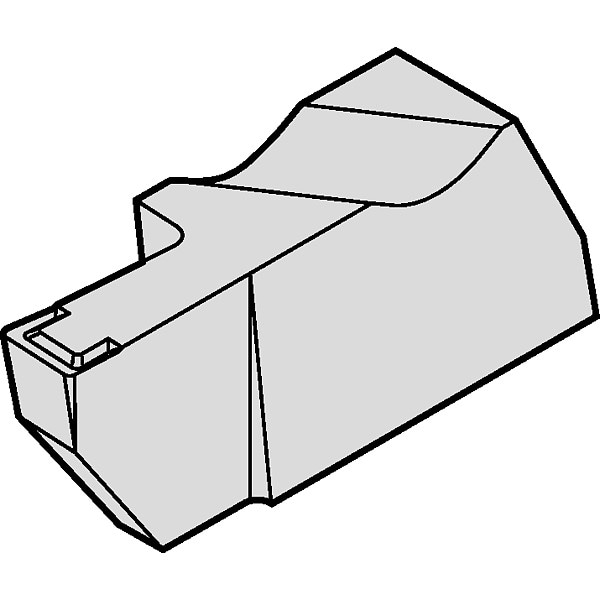

Widia Grooving/Parting Insert, NGD-K, Carbide NGD3125RK - main

Grooving/Parting Insert, NGD-K, Carbide

  • Mfr # NGD3125RK

  • Zoro # G3596529

product price: $20.29
/ea
Sold in multiples of 5 for $101.45

Key Features

Insert Seat Size
3
Width
0.1960 in
Chip-Breaker
Yes
Grade
TN6010
Cutting Direction
Right Hand
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NGD3125RK
Zoro #
G3596529
UPC #
4021169749384
Country of Origin
United States

Dimensions

Insert Seat Size
3
Width
0.1960 in
Insert Size
3
Corner Radius
0.0100 in
Thickness
0.3440 in
Max. Grooving Width
1/8 in
Depth of Cut
1/4 in
Seat Size
3

Details

Item
Parting and Grooving Insert
Chip-Breaker
Yes
Grade
TN6010
Cutting Direction
Right Hand
Mounting Style
Notch
No. of Edges
1
Rake
10 Degrees
Insert Style
NGD-K
Coating
ALOX-SN
Insert Material
Carbide
ISO Number
NGD3125RK
Lead Angle
11 Degrees
Application
Grooving
ANSI Code
NGD3125RK
Number of Cutting Edges
1
Cutting Application
Grooving
Material - Machining
Carbide
Clearance Angle
11 Degrees
Primary Material Application ISO Code
K, M, N, P, S
Chip-Breaker Style
On One Side
Measurement System
Fractional Inch
Coating Process
PVD
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Magnesium, Nickel, Stainless Steel, Steel, Titanium
Secondary Material Application
Hardened Steel
Secondary Material Application ISO Code
H
Chip-Breaker Code
K
Hole Type
No Hole
Manufacturer Grade
TN6010

Description

Parting and Grooving Insert, Right Hand, Max. Grooving Width 1/8 in, ANSI Code NGD3125RK, Chip-Breaker Code K, Chip-Breaker Style On One Side, Clearance Angle 11 Degrees , Coating Process PVD

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
