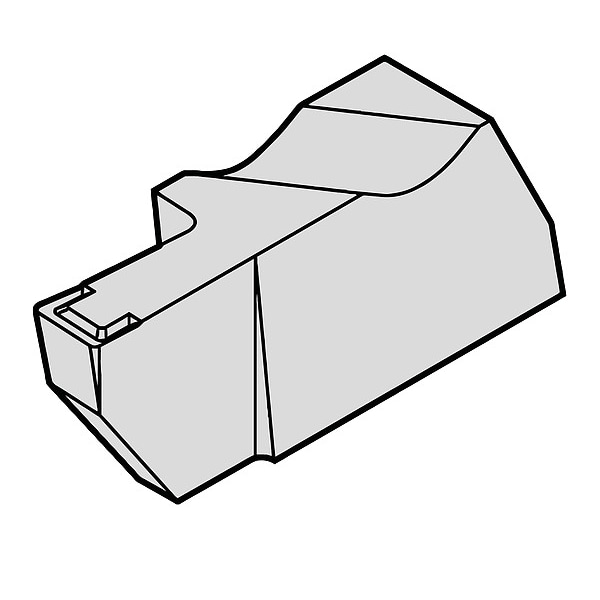

Widia Grooving/Parting Insert, NGD-K, Carbide NGD4250RK - main

Grooving/Parting Insert, NGD-K, Carbide

  • Mfr # NGD4250RK

  • Zoro # G3599889

product price: $26.19
/ea
Sold in multiples of 10 for $261.90

Key Features

Insert Seat Size
4
Width
0.2560 in
Chip-Breaker
Yes
Grade
TN6025
Cutting Direction
Right Hand
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NGD4250RK
Zoro #
G3599889
UPC #
4021169741074
Country of Origin
United States

Dimensions

Insert Seat Size
4
Width
0.2560 in
Insert Size
4
Corner Radius
0.0250 in
Depth of Cut
1/2 in
Seat Size
4
Max. Grooving Width
1/4 in
Thickness
0.4530 in

Details

Item
Parting and Grooving Insert
Chip-Breaker
Yes
Grade
TN6025
Cutting Direction
Right Hand
Lead Angle
11 Degrees
Rake
10 Degrees
Insert Material
Carbide
Mounting Style
Notch
Coating
AlTiN
Insert Style
NGD-K
No. of Edges
1
Application
Grooving
ISO Number
NGD4250RK
Chip-Breaker Style
On One Side
Coating Process
PVD
Cutting Application
Grooving
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Hardened Steel
Primary Material Application ISO Code
M, P, S
ANSI Code
NGD4250RK
Hole Type
No Hole
Measurement System
Fractional Inch
Manufacturer Grade
TN6025
Secondary Material Application ISO Code
H, K, N
Feed Type
High
Clearance Angle
11 Degrees
Number of Cutting Edges
1
Chip-Breaker Code
K
Finish - Machining
AlTiN
Primary Material Application
Nickel, Stainless Steel, Steel, Titanium
Material - Machining
Carbide

Description

Parting and Grooving Insert, Right Hand, Max. Grooving Width 1/4 in, ANSI Code NGD4250RK, Chip-Breaker Code K, Chip-Breaker Style On One Side, Clearance Angle 11 Degrees , Coating Process PVD
