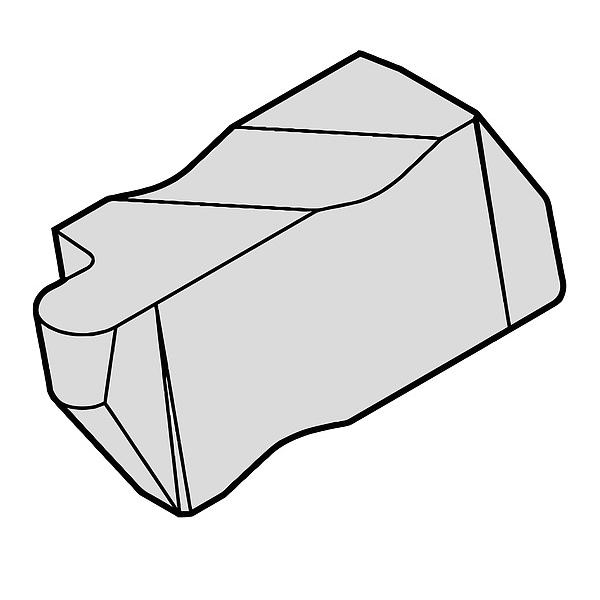

Widia Grooving/Parting Insert, NR, Carbide NR3M175R - main

Grooving/Parting Insert, NR, Carbide

  • Mfr # NR3M175R

  • Zoro # G3593360

product price: $27.69
/ea
Sold in multiples of 5 for $138.45

Key Features

Style
TopGroove(TM)
Insert Seat Size
3
Width
4.98mm
Chip-Breaker
No
Grade
TN6025
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NR3M175R
Zoro #
G3593360
UPC #
4021169740152
Country of Origin
United States

Dimensions

Insert Seat Size
3
Width
4.98mm
Corner Radius
1.75mm
Insert Size
3
Max. Grooving Width
3.50mm
Seat Size
3
Thickness
8.74mm
Depth of Cut
3.81mm

Details

Item
Parting and Grooving Insert
Style
TopGroove(TM)
Chip-Breaker
No
Grade
TN6025
Cutting Direction
Right Hand
Lead Angle
11 Degrees
Coating
AlTiN
Insert Style
NR
ISO Number
NR3M175R
Rake
Neutral
No. of Edges
2
Insert Material
Carbide
Mounting Style
Notch
Application
Grooving
Feed Type
High
Cutting Application
Grooving
Clearance Angle
11 Degrees
Coating Process
PVD
Measurement System
Metric
Material - Machining
Carbide
Manufacturer Grade
TN6025
Primary Material Application
Nickel, Stainless Steel, Steel, Titanium
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Hardened Steel
Number of Cutting Edges
2
Secondary Material Application ISO Code
H, K, N
ANSI Code
NR3M175R
Finish - Machining
AlTiN
Hole Type
No Hole
Primary Material Application ISO Code
M, P, S

Description

Parting and Grooving Insert, Right Hand, Max. Grooving Width 3.50mm, ANSI Code NR3M175R, Clearance Angle 11 Degrees , Coating Process PVD
