  11. Grooving/Parting Insert, WMT-P-PC, Carbide

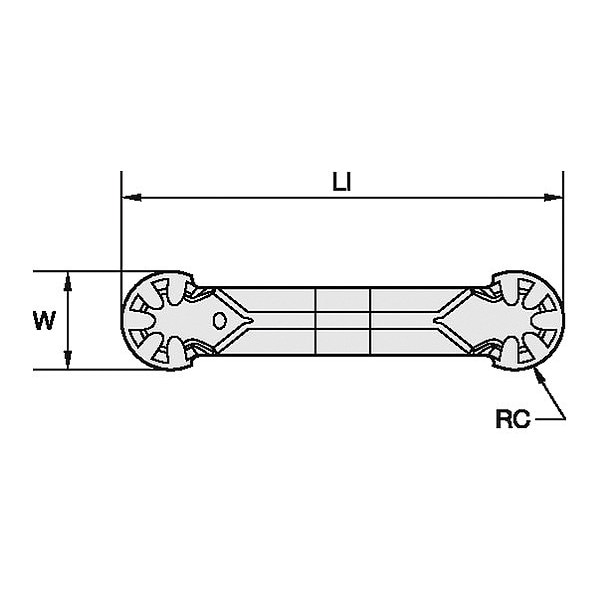

Widia Grooving/Parting Insert, WMT-P-PC, Carbide WMTR600M6PPC - main

Grooving/Parting Insert, WMT-P-PC, Carbide

  • Mfr # WMTR600M6PPC

  • Zoro # G3599152

product price: $35.99
/ea
Sold in multiples of 10 for $359.90

Key Features

Style
WMT
Insert Seat Size
6
Width
4.57mm
Chip-Breaker
Yes
Grade
WU10PT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WMTR600M6PPC
Zoro #
G3599152
UPC #
4021169609091
Country of Origin
United States

Dimensions

Insert Seat Size
6
Width
4.57mm
Insert Size
6
Overall Length
28.65mm
Corner Radius
3.00mm
Seat Size
6
Reference Length
28.65mm
Thickness
6.06mm
Max. Grooving Width
6.00mm

Details

Item
Parting and Grooving Insert
Style
WMT
Chip-Breaker
Yes
Grade
WU10PT
Cutting Direction
Neutral
Application
Grooving
Insert Style
WMT-P-PC
Mounting Style
Convex Prismatic Cross Section
Coating
AlTiN
Insert Material
Carbide
ISO Number
WMTR600M6PPC
Lead Angle
6 Degrees
No. of Edges
2
Number of Cutting Edges
2
Chip-Breaker Style
On One Side
Measurement System
Metric
Finish - Machining
AlTiN
Clearance Angle
6 Degrees
Cutting Application
Profiling
Secondary Material Application
Cast Iron, Hardened Steel, Steel
Material - Machining
Carbide
Hole Type
No Hole
Manufacturer Grade
WU10PT
Primary Material Application
Aluminum, Brass, Bronze, Copper, Magnesium, Nickel, Stainless Steel, Titanium
Secondary Material Application ISO Code
H, K, P
Coating Process
PVD
Primary Material Application ISO Code
M, N, S
ANSI Code
WMTR600M6PPC
Chip-Breaker Code
PC

Description

Parting and Grooving Insert, Neutral, Max. Grooving Width 6.00mm, ANSI Code WMTR600M6PPC, Chip-Breaker Code PC, Chip-Breaker Style On One Side, Clearance Angle 6 Degrees , Coating Process PVD
