  11. Grooving/Parting Insert, WMT-P-PT, Carbide

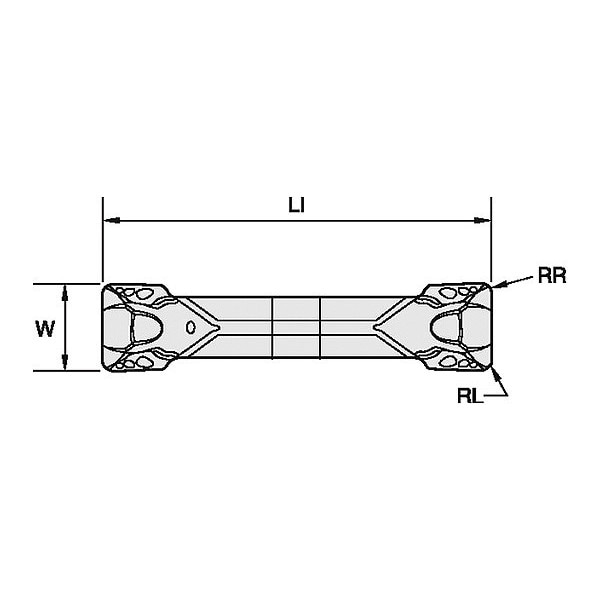

Widia Grooving/Parting Insert, WMT-P-PT, Carbide WMTS094I2BP04PT - main

Grooving/Parting Insert, WMT-P-PT, Carbide

  • Mfr # WMTS094I2BP04PT

  • Zoro # G3597509

product price: $33.29
/ea
Sold in multiples of 5 for $166.45

Key Features

Style
WMT
Insert Seat Size
2B
Width
0.0740 in
Chip-Breaker
Yes
Grade
WU25PT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WMTS094I2BP04PT
Zoro #
G3597509
UPC #
4021169607318
Country of Origin
United States

Dimensions

Insert Seat Size
2B
Width
0.0740 in
Overall Length
0.8720 in
Insert Size
2B
Corner Radius
0.0150 in
Thickness
0.1650 in
Max. Grooving Width
3/32 in
Seat Size
2B
Reference Length
0.8720 in

Details

Item
Parting and Grooving Insert
Style
WMT
Chip-Breaker
Yes
Grade
WU25PT
Cutting Direction
Neutral
ISO Number
WMTS094I2BP04PT
Mounting Style
Convex Prismatic Cross Section
Insert Material
Carbide
Insert Style
WMT-P-PT
Coating
AlTiN
No. of Edges
2
Application
Grooving
Lead Angle
5 Degrees
Hole Type
No Hole
Measurement System
Fractional Inch
Number of Cutting Edges
2
Cutting Application
Grooving, Turning
Coating Process
PVD
Chip-Breaker Style
On One Side
Primary Material Application ISO Code
M, N, S
Feed Type
High
Clearance Angle
5 Degrees
Material - Machining
Carbide
Secondary Material Application ISO Code
K, P
Chip-Breaker Code
PT
Secondary Material Application
Cast Iron, Steel
ANSI Code
WMTS094I2BP04PT
Manufacturer Grade
WU25PT
Primary Material Application
Aluminum, Brass, Bronze, Copper, Magnesium, Nickel, Stainless Steel, Titanium
Finish - Machining
AlTiN

Description

Parting and Grooving Insert, Neutral, Max. Grooving Width 3/32 in, ANSI Code WMTS094I2BP04PT, Chip-Breaker Code PT, Chip-Breaker Style On One Side, Clearance Angle 5 Degrees , Coating Process PVD
