Grooving/Parting Toolholder, WMT, LH
Mfr # WMTSL122065
Zoro # G3749731
product price: $178.99
/ea
Free Shipping & Returns
Key Features
Cutting Direction
Left Hand
Overall Length
5 in
Shank Shape
Square
Series
WMT
Material
High Speed Steel
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
WMTSL122065
Zoro #
G3749731
UPC #
4021169677663
Country of Origin
United States

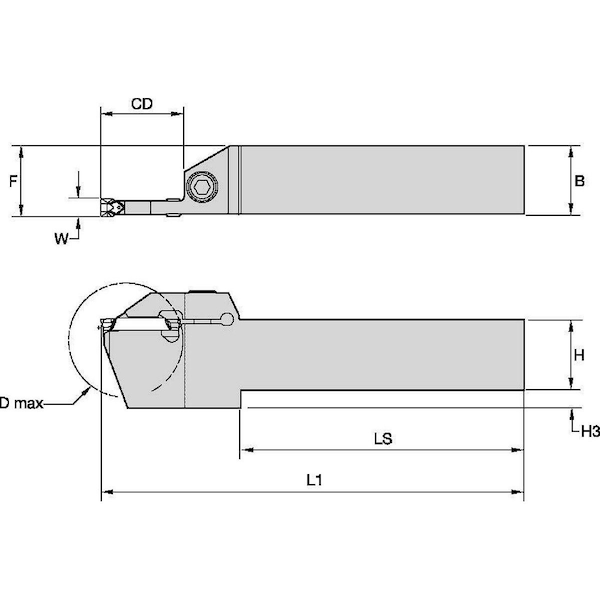

Dimensions
Overall Length
5 in
Shank Length
3.6800 in
Shank Height
3/4 in
Max. Grooving Width
2.00mm
Shank Width
3/4 in
Depth of Cut
0.6500 in
Details
Item
Indexable Grooving and Parting Toolholder
Cutting Direction
Left Hand
Shank Shape
Square
Series
WMT
Material
High Speed Steel
Insert Shape
Bottom
Clamp Screw
3 mm
ANSI Code
WMTSL122065
Toolholder Style
WMT
ISO Number
WMTSL122065
Cutting Application
Cut-Off, Grooving, Profiling, Turning
Coolant Fed
Non-Coolant Through
Measurement System
Decimal Inch
Lead Angle
90 Degrees
Description
Indexable Grooving and Parting Toolholder, Left Hand, Cut-Off, Grooving, Profiling, Turning, Shank Width 3/4 in, ANSI Code WMTSL122065, Coolant Fed Non-Coolant Through
