Grooving/Parting Toolholder, WMT, RH
Mfr # WMTSR103087
Zoro # G3761482
product price: $211.99
/ea
Free Shipping & Returns
Key Features
Series
WMT
Clamp Screw
4 mm
Clamp
2.7500"
Cutting Direction
Right Hand
Overall Length
5 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
WMTSR103087
Zoro #
G3761482
UPC #
4021169679650
Country of Origin
Brazil

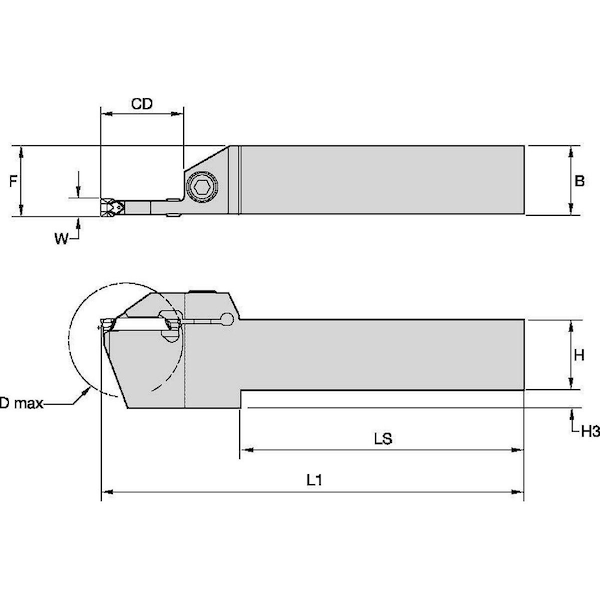

Dimensions
Overall Length
5 in
Shank Length
85.72mm
Depth of Cut
7/8 in
Max. Grooving Width
1/8 in
Shank Height
5/8 in
Shank Width
5/8 in
Details
Item
Indexable Grooving and Parting Toolholder
Series
WMT
Clamp Screw
4 mm
Clamp
2.7500"
Cutting Direction
Right Hand
Insert Shape
Bottom
Shank Shape
Square
Material
High Speed Steel
ISO Number
WMTSR103087
ANSI Code
WMTSR103087
Coolant Fed
Non-Coolant Through
Offset Shank
Yes
Cutting Application
Cut-Off, Grooving, Profiling, Turning
Toolholder Style
WMT
Max. Overhang
1/4 in
Measurement System
Decimal Inch
Lead Angle
90 Degrees
Description
Indexable Grooving and Parting Toolholder, Right Hand, Cut-Off, Grooving, Profiling, Turning, Shank Width 5/8 in, ANSI Code WMTSR103087, Coolant Fed Non-Coolant Through
