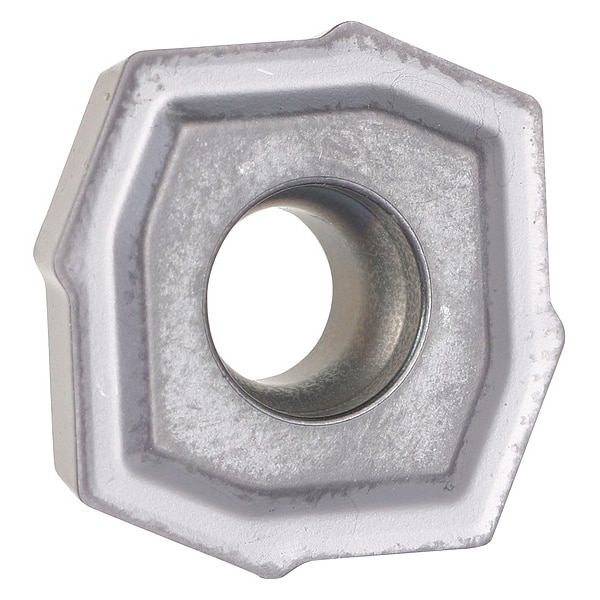

Widia Indexable Drilling Insert, 150406, Carbide TCF150406FCV36 - main

Indexable Drilling Insert, 150406, Carbide

  • Mfr # TCF150406FCV36

  • Zoro # G3819269

product price: $19.79
/ea
Sold in multiples of 5 for $98.95

Key Features

Cutting Direction
Right Hand
Material
Carbide
Finish
TiN
Insert Shape
V36
Insert Style
TCF
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF150406FCV36
Zoro #
G3819269
UPC #
4050839914678
Country of Origin
Germany

Dimensions

Insert Size
150406
Dimension Type
Inch
Insert Thickness
0.1650"
Hole Dia.
4.80mm
Seat Size
F
Width
12.2000mm
Corner Radius
0.60mm
Thickness
4.20mm
Cutting Edge Length
12.20mm

Details

Cutting Direction
Right Hand
Material
Carbide
Finish
TiN
Item
Indexable Drilling Insert
Insert Shape
V36
Insert Style
TCF
Measurement System
Metric
Coating
TiN
Material - Machining
Carbide
Inscribed Circle
0.5880 in
Insert Application
Drilling
Finish - Machining
TiN
Application
Drilling
Primary Material Application ISO Code
K, M, P
Primary Material Application
Cast Iron, Stainless Steel, Steel
Chip-Breaker
Yes
No. of Edges
4
Grade
WU40PH
ISO Number
TCF150406FCV36
Relief Angle
11 Degrees
ANSI Code
TCF150406FCV36
Manufacturer Grade
WU40PH
Shape
Triangle
Peripheral Insert Style
Center Insert
Number of Cutting Edges
4
Coating Process
PVD
Mounting Style
Taper Screw

Description

Indexable Drilling Insert, Seat Size F, Relief Angle 11 Degrees , TiN, ANSI Code TCF150406FCV36, Coating Process PVD, Corner Radius 0.60mm, Hole Dia. 4.80mm
