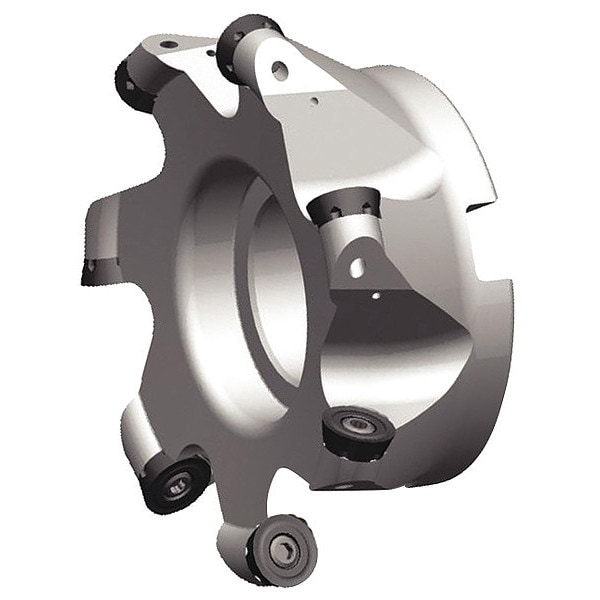

Widia Indexable Face Mill, M100 Series, High Speed Steel, 0.3150 in Depth of Cut M100D200Z04S075RC16 - main

Indexable Face Mill, M100 Series, High Speed Steel, 0.3150 in Depth of Cut

  • Mfr # M100D200Z04S075RC16

  • Zoro # G3800490

product price:  $568.99
/ea
Free Shipping & Returns

Key Features

Series
M100
Overall Length
1-5/8 in
Depth of Cut
0.3150 in
Material - Machining
High Speed Steel
Insert Size
1606
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
M100D200Z04S075RC16
Zoro #
G3800490
UPC #
4021169317569
Country of Origin
India

Dimensions

Overall Length
1-5/8 in
Depth of Cut
0.3150 in
Insert Size
1606
Arbor Dia.
3/4 in
Hub Outside Dia.
1.7000 in
Max. Cutting Dia.
2 in

Details

Item
Indexable Face Mill
Series
M100
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Type
Face Mill
Number of Flutes
4
Insert Shape
Round
Coolant Fed
Coolant Through
ANSI Code
M100D200Z04S075RC16
Compatible Hardware
3/8"-24 x 1 in Socket Head Cap Screw, Insert Screw M4.5x0.75 x 11 T20, Screw 3/8"-24 x 1 in LG Coolant G
Number of Inserts
4
Features
Anti-Rotation Feature for Top Security
Insert Style
RC
Insert Holding Type
Screw
ISO Number
M100D200Z04S075RC16
Cutting Application
3D Profiling, Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Ball Nose, Slotting: Square End
Max. Speed
15,000 RPM
Material
High Speed Steel

Description

Indexable Face Mill, Max. Cutting Dia. 2 in, Arbor Dia. 3/4 in, Depth of Cut 0.3150 in, ANSI Code M100D200Z04S075RC16, Compatible Hardware 3/8 In.-24 x 1 in Socket Head Cap Screw, Insert Screw M4.5x0.75 x 11 T20, Screw 3/8 In.-24 x 1 in LG Coolant G, Coolant Fed Coolant Through, Cutting Application 3D Profiling, Face Milling, Helical Milling, Pocketing, Ramping: Blank, Side and Face Milling, Side/Shoulder Milling: Ball Nose, Slotting: Square End
