  6. Indexable Face Mill, VHSC Series, High Speed Steel, 5/8 in Depth of Cut

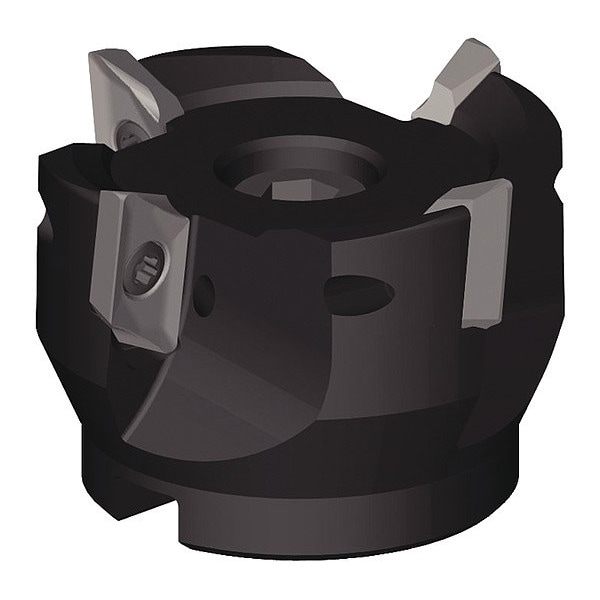

Widia Indexable Face Mill, VHSC Series, High Speed Steel, 5/8 in Depth of Cut VHSC200Z03S075XD16 - main

Indexable Face Mill, VHSC Series, High Speed Steel, 5/8 in Depth of Cut

  • Mfr # VHSC200Z03S075XD16

  • Zoro # G3793210

product price:  $640.99
/ea
Free Shipping & Returns

Key Features

Series
VHSC
Overall Length
1.5748 in
Depth of Cut
5/8 in
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
VHSC200Z03S075XD16
Zoro #
G3793210
UPC #
4061779098649
Country of Origin
Germany

Dimensions

Overall Length
1.5748 in
Depth of Cut
5/8 in
Insert Size
16M508
Hub Outside Dia.
1.7717 in
Max. Cutting Dia.
2 in
Arbor Dia.
3/4 in

Details

Item
Indexable Face Mill
Series
VHSC
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Number of Flutes
3
Type
Face Mill
Rake
-7.9 Degrees Radial, 7 Degrees Axial
Insert Shape
89.27 Degrees Parallelogram
ISO Number
VHSC200Z03S075XD16
Coolant Fed
Coolant Through
Cutting Application
Face Milling, Helical Milling, Inclined Square End Mill, Pocketing, Ramping: Blank, Side and Face Milling
ANSI Code
VHSC200Z03S075XD16
Features
Consistant Axial Gage Length with Insert Nose Radii From 0.008 in (0.2mm) up to 0.236 in (6mm), Only One Cutter Body Style to Load Inserts with Nose Radii from 0.008 in (0.2mm) up to 0.236 in (6mm), Productivity Booster up to 525in³/min (8600cm³/min) MRR at Machining Aluminum Components
Insert Holding Type
Screw
Insert Style
XDET FRALP
Compatible Hardware
DP5009A, Torx Plus Drive Wrench
Max. Speed
30,000 RPM
Number of Inserts
3
Material
High Speed Steel

Description

Indexable Face Mill, Max. Cutting Dia. 2 in, Arbor Dia. 3/4 in, Depth of Cut 5/8 in, ANSI Code VHSC200Z03S075XD16, Compatible Hardware DP5009A, Torx Plus Drive Wrench, Coolant Fed Coolant Through, Cutting Application Face Milling, Helical Milling, Inclined Square End Mill, Pocketing, Ramping: Blank, Side and Face Milling
