Shop WIDIA

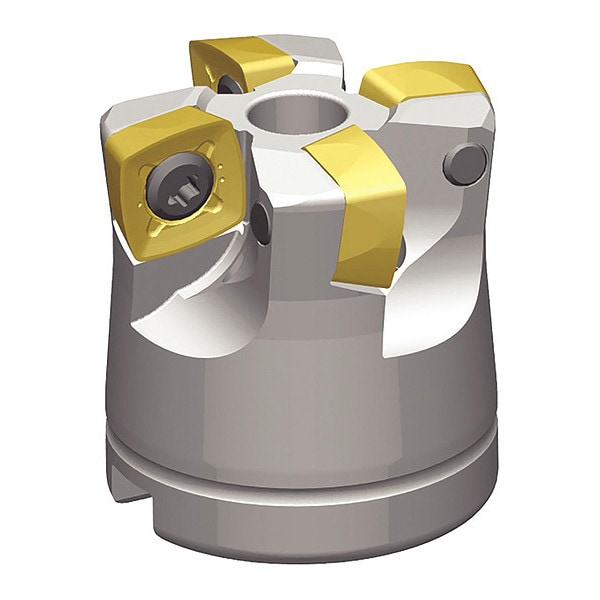

Indexable Face Mill, VXF Series, High Speed Steel, 0.0984 in Depth of Cut

  • Mfr # 6596780

  • Zoro # G3789981

product price:
$
983.99
/ea
Free Shipping & Returns

Key Features

Series
VXF
Overall Length
1-31/32 in
Depth of Cut
0.0984 in
Material - Machining
High Speed Steel
Insert Size
120512
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6596780
Zoro #
G3789981
UPC #
4061779081757
Country of Origin
India

Dimensions

Overall Length
1-31/32 in
Depth of Cut
0.0984 in
Insert Size
120512
Hub Outside Dia.
2.5591 in
Arbor Dia.
1-1/4 in
Max. Cutting Dia.
4 in
Wire Rope Length
1-31/32 in
Length
1-31/32 in

Details

Item
Indexable Face Mill
Series
VXF
Material - Machining
High Speed Steel
Cutting Direction
Right Hand
Number of Flutes
9
Type
Face Mill
Insert Shape
90 Degrees Square
Rake
-5 Degrees Radial, 5 Degrees Axial
ANSI Code
VXF400Z09S125XD12
Side Cutting Edge Angle
16.5 Degrees
ISO Number
VXF400Z09S125XD12
Insert Holding Type
Screw
Compatible Hardware
Anti-Seize Lubricant, Insert Screw M4.5x0.75 x 11 T20, Torx Driver
Cutting Application
Counter Boring, Face Milling, Helical Milling, Inclined Square End Mill, Plunge Milling, Pocketing, Ramping: Blank, Spiral Circular
Coolant Fed
Coolant Through
Number of Inserts
9
Features
16.5 Degrees Lead Angle Redistributes Cutting Forces in the Spindle Z-Axis Direction, Durable Cutting Edges Qualified to Machine a Wide Range of Materials, Greatly Reduces Tool Deflection and Vibrations for Improved Tool Life, Suitable for Long Tool Reach, Unique Integrated Radial Wiping Facet to Achieve a Nice Wall Finish at Pocket and Helical Interpolation Milling, WS40PM Best In Class Milling Grade for Machining Stainless Steel and HTA
Insert Style
XDPT ERMM
Max. Speed
14,500 RPM
Material
High Speed Steel

Description

Indexable Face Mill, Max. Cutting Dia. 4 in, Arbor Dia. 1-1/4 in, Depth of Cut 0.0984 in, ANSI Code VXF400Z09S125XD12, Compatible Hardware Anti-Seize Lubricant, Insert Screw M4.5x0.75 x 11 T20, Torx Driver, Coolant Fed Coolant Through, Cutting Application Counter Boring, Face Milling, Helical Milling, Inclined Square End Mill, Plunge Milling, Pocketing, Ramping: Blank, Spiral Circular
