  11. Indexable Insert Drill, 1-1/2", TCF

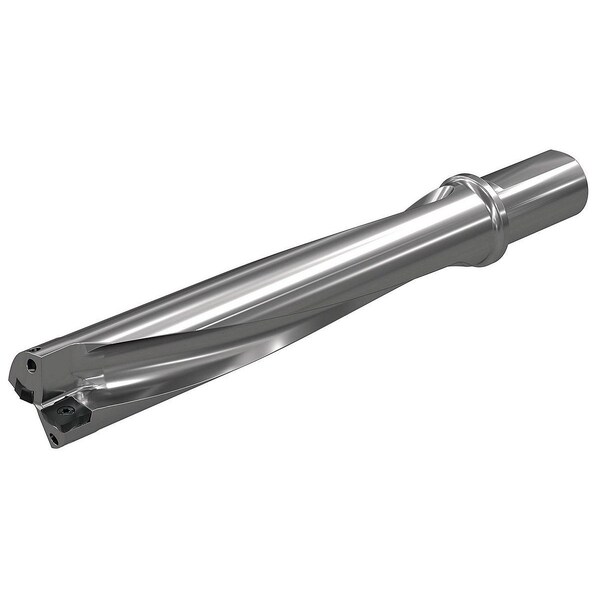

Widia Indexable Insert Drill, 1-1/2", TCF TCF1406R5SLR150E - main

Indexable Insert Drill, 1-1/2", TCF

  • Mfr # TCF1406R5SLR150E

  • Zoro # G3778955

product price: $727.99
/ea
Free Shipping & Returns

Key Features

Diameter
1-1/2"
Ratio
5xD
Overall Length
11.3374 in
Shank Dia.
1-1/2 in
Cutting Direction
Right Hand
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF1406R5SLR150E
Zoro #
G3778955
UPC #
4050839895267
Country of Origin
Germany

Dimensions

Diameter
1-1/2"
Overall Length
11.3374 in
Shank Dia.
1-1/2 in
Shank Length
2.7559 in
Max. Drilling Depth
7.0800 in
Min. Drill Dia.
1-13/32 in
Depth x Dia. Ratio
5xD
Flute Length
8.2270 in

Details

Item
Indexable Insert Drill
Ratio
5xD
Cutting Direction
Right Hand
Mounting Style
Screw Clamp
Number of Inserts
2
ANSI Code
TCF1406R5SLR150E
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit
Spiral Direction
Right Hand
Toolholder Style
TCF
Flanged Shank
Yes
Flute Type
Slow Spiral
ISO Number
TCF1406R5SLR150E
Central Insert Style
TCF
Shank Type - Machining
Round with Flat and Side Lock
Number of Coolant Holes
2
Coolant Fed
Coolant Through
Measurement System
Fractional Inch

Description

Indexable Insert Drill, 5xD, Max. Drilling Depth 7.0800 in, TCF1406R5SLR150E, TCF, Coolant Through
