  11. Indexable Insert Drill, 1-1/2", TCF
Widia Indexable Insert Drill, 1-1/2", TCF TCF1438R2SLR150E - main

Indexable Insert Drill, 1-1/2", TCF

  • Mfr # TCF1438R2SLR150E

  • Zoro # G3779299

product price: $648.99
/ea
Free Shipping & Returns

Key Features

Diameter
1-1/2"
Ratio
2xD
Shank Length
70.00mm
Shank Dia.
1-1/2 in
Overall Length
183.22mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF1438R2SLR150E
Zoro #
G3779299
UPC #
4050839892921
Country of Origin
Bulgaria

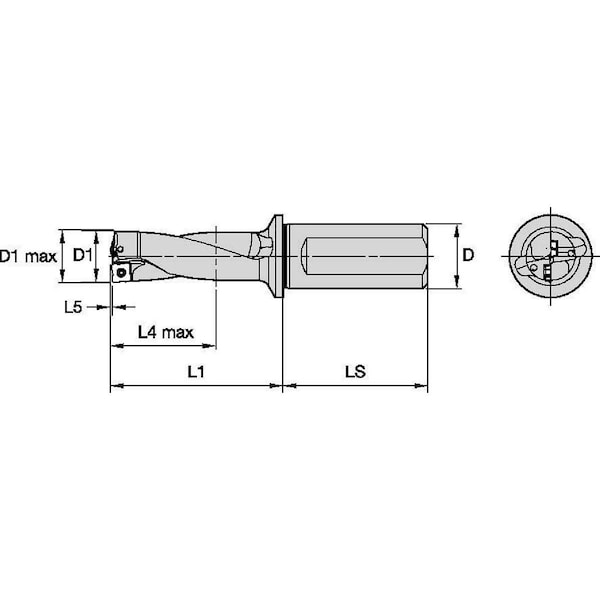

Dimensions

Diameter
1-1/2"
Shank Length
70.00mm
Shank Dia.
1-1/2 in
Overall Length
183.22mm
Min. Drill Dia.
36.53mm
Max. Drilling Depth
74.33mm
Depth x Dia. Ratio
2xD
Flute Length
104.20mm
Max. Drill Dia.
36.53mm

Details

Item
Indexable Insert Drill
Ratio
2xD
Mounting Style
Screw Clamp
Cutting Direction
Right Hand
Shank Type - Machining
Round with Flat and Side Lock
ANSI Code
TCF1438R2SLR150E
Flanged Shank
Yes
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset
Coolant Fed
Coolant Through
Central Insert Style
TCF
Spiral Direction
Right Hand
Toolholder Style
TCF
Flute Type
Slow Spiral
Number of Inserts
2
Number of Coolant Holes
2
ISO Number
TCF1438R2SLR150E
Measurement System
Fractional Inch

Description

Indexable Insert Drill, 2xD, Max. Drilling Depth 74.33mm, TCF1438R2SLR150E, TCF, Coolant Through
