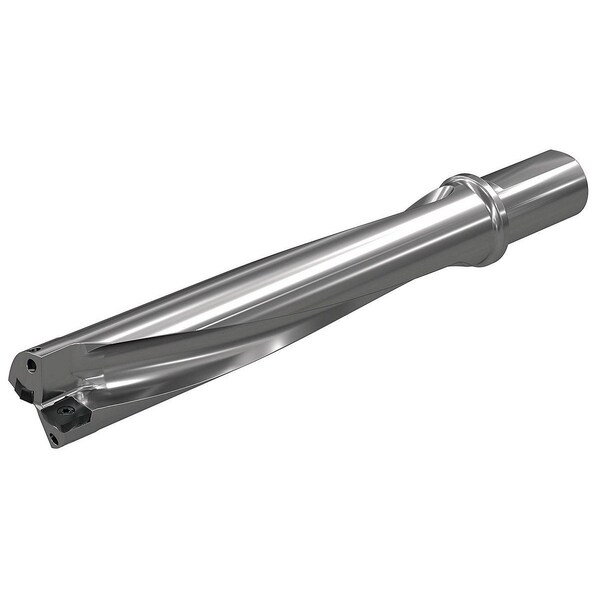

Widia Indexable Insert Drill, 1-1/2", TCF TCF1438R5SLR150E - main

Indexable Insert Drill, 1-1/2", TCF

  • Mfr # TCF1438R5SLR150E

  • Zoro # G3778529

product price: $790.99
/ea
Free Shipping & Returns

Key Features

Diameter
1-1/2"
Ratio
5xD
Shank Dia.
1-1/2 in
Shank Length
2.7559 in
Cutting Direction
Right Hand
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF1438R5SLR150E
Zoro #
G3778529
UPC #
4050839895359
Country of Origin
Bulgaria

Dimensions

Diameter
1-1/2"
Shank Dia.
1-1/2 in
Shank Length
2.7559 in
Overall Length
11.5272 in
Flute Length
8.4170 in
Min. Drill Dia.
1-7/16 in
Depth x Dia. Ratio
5xD
Max. Drilling Depth
7.2400 in

Details

Item
Indexable Insert Drill
Ratio
5xD
Cutting Direction
Right Hand
Mounting Style
Screw Clamp
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit
Number of Coolant Holes
2
Central Insert Style
TCF
Shank Type - Machining
Round with Flat and Side Lock
Flanged Shank
Yes
ANSI Code
TCF1438R5SLR150E
Spiral Direction
Right Hand
Flute Type
Slow Spiral
Coolant Fed
Coolant Through
Toolholder Style
TCF
Number of Inserts
2
ISO Number
TCF1438R5SLR150E
Measurement System
Fractional Inch

Description

Indexable Insert Drill, 5xD, Max. Drilling Depth 7.2400 in, TCF1438R5SLR150E, TCF, Coolant Through
