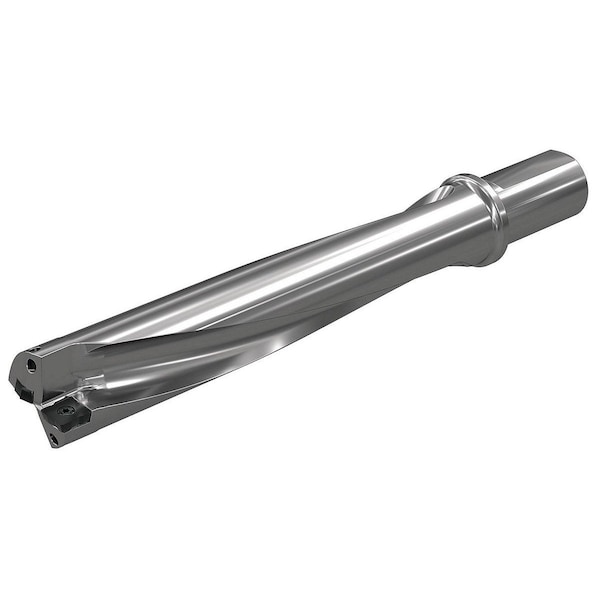

Widia Indexable Insert Drill, 1-1/2", TCF TCF1656R5SLR150F - main

Indexable Insert Drill, 1-1/2", TCF

  • Mfr # TCF1656R5SLR150F

  • Zoro # G3749433

product price: $839.99
/ea
Free Shipping & Returns

Key Features

Diameter
1-1/2"
Ratio
5xD
Cutting Direction
Right Hand
Mounting Style
Screw Clamp
Overall Length
12.8222 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF1656R5SLR150F
Zoro #
G3749433
UPC #
4050841114134
Country of Origin
United States

Dimensions

Diameter
1-1/2"
Overall Length
12.8222 in
Shank Dia.
1-1/2 in
Shank Length
2.7559 in
Depth x Dia. Ratio
5xD
Flute Length
9.7120 in
Max. Drilling Depth
8.3390 in
Min. Drill Dia.
1-21/32 in

Details

Item
Indexable Insert Drill
Ratio
5xD
Cutting Direction
Right Hand
Mounting Style
Screw Clamp
ISO Number
TCF1656R5SLR150F
Flanged Shank
Yes
Coolant Fed
Coolant Through
Flute Type
Slow Spiral
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit
Shank Type - Machining
Round with Flat and Side Lock
Spiral Direction
Right Hand
Number of Inserts
2
Number of Coolant Holes
2
Central Insert Style
TCF
ANSI Code
TCF1656R5SLR150F
Toolholder Style
TCF
Measurement System
Fractional Inch

Description

Indexable Insert Drill, 5xD, Max. Drilling Depth 8.3390 in, TCF1656R5SLR150F, TCF, Coolant Through
