  11. Indexable Insert Drill, 1-1/2", TCF
Widia Indexable Insert Drill, 1-1/2", TCF TCF1688R3SLR150F - main

Indexable Insert Drill, 1-1/2", TCF

  • Mfr # TCF1688R3SLR150F

  • Zoro # G3762830

product price: $681.99
/ea
Free Shipping & Returns

Key Features

Diameter
1-1/2"
Ratio
3xD
Shank Dia.
1-1/2 in
Mounting Style
Screw Clamp
Cutting Direction
Right Hand
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF1688R3SLR150F
Zoro #
G3762830
UPC #
4050841112789
Country of Origin
United States

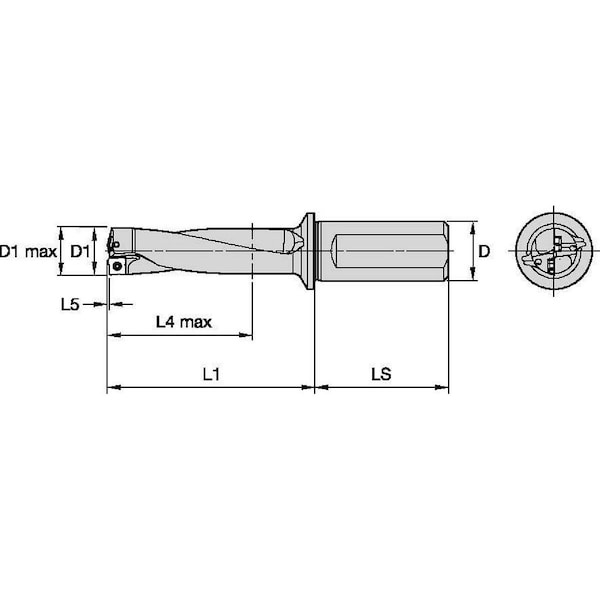

Dimensions

Diameter
1-1/2"
Shank Dia.
1-1/2 in
Overall Length
244.76mm
Shank Length
70.00mm
Min. Drill Dia.
42.88mm
Flute Length
165.80mm
Depth x Dia. Ratio
3xD
Max. Drilling Depth
130.16mm
Max. Drill Dia.
43.88mm

Description

Indexable Insert Drill, 3xD, Max. Drilling Depth 130.16mm, TCF1688R3SLR150F, TCF, Coolant Through
