  11. Indexable Insert Drill, 1-1/2", TCF
Widia Indexable Insert Drill, 1-1/2", TCF TCF1875R2SLR150G - main

Indexable Insert Drill, 1-1/2", TCF

  • Mfr # TCF1875R2SLR150G

  • Zoro # G3751901

product price: $600.99
/ea
Free Shipping & Returns

Key Features

Diameter
1-1/2"
Ratio
2xD
Mounting Style
Screw Clamp
Overall Length
8.3095 in
Shank Dia.
1-1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF1875R2SLR150G
Zoro #
G3751901
UPC #
4050841118811
Country of Origin
Bulgaria

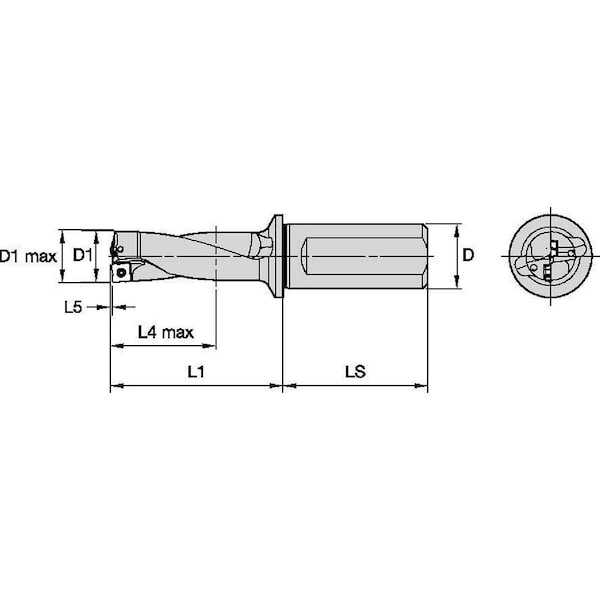

Dimensions

Diameter
1-1/2"
Overall Length
8.3095 in
Shank Dia.
1-1/2 in
Shank Length
2.7559 in
Depth x Dia. Ratio
2xD
Min. Drill Dia.
1-7/8 in
Max. Drilling Depth
3.8180 in
Flute Length
5.1990 in
Max. Drill Dia.
1.9144"

Details

Item
Indexable Insert Drill
Ratio
2xD
Mounting Style
Screw Clamp
Cutting Direction
Right Hand
Number of Inserts
2
ANSI Code
TCF1875R2SLR150G
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset
Flanged Shank
Yes
Toolholder Style
TCF
Spiral Direction
Right Hand
Shank Type - Machining
Round with Flat and Side Lock
Central Insert Style
TCF
Number of Coolant Holes
2
ISO Number
TCF1875R2SLR150G
Coolant Fed
Coolant Through
Flute Type
Slow Spiral
Measurement System
Fractional Inch

Description

Indexable Insert Drill, 2xD, Max. Drilling Depth 3.8180 in, TCF1875R2SLR150G, TCF, Coolant Through
