  11. Indexable Insert Drill, 1-1/2", TCF

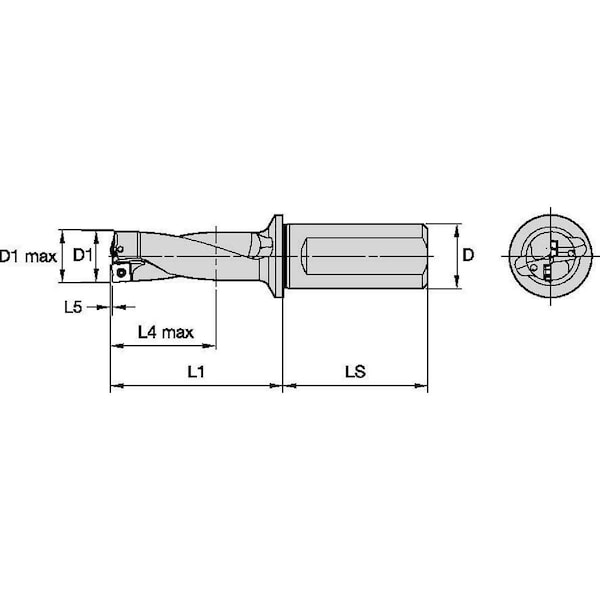

Widia Indexable Insert Drill, 1-1/2", TCF TCF2219R2SLR150G - main

Indexable Insert Drill, 1-1/2", TCF

  • Mfr # TCF2219R2SLR150G

  • Zoro # G3760852

product price: $817.99
/ea
Free Shipping & Returns

Key Features

Diameter
1-1/2"
Ratio
2xD
Mounting Style
Screw Clamp
Overall Length
235.78mm
Shank Dia.
1-1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF2219R2SLR150G
Zoro #
G3760852
UPC #
4050841119177
Country of Origin
Bulgaria

Dimensions

Diameter
1-1/2"
Overall Length
235.78mm
Shank Dia.
1-1/2 in
Shank Length
70.00mm
Depth x Dia. Ratio
2xD
Max. Drilling Depth
114.68mm
Flute Length
156.80mm
Min. Drill Dia.
56.36mm
Max. Drill Dia.
57.36mm

Details

Item
Indexable Insert Drill
Ratio
2xD
Mounting Style
Screw Clamp
Cutting Direction
Right Hand
Toolholder Style
TCF
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset
Spiral Direction
Right Hand
ANSI Code
TCF2219R2SLR150G
Central Insert Style
TCF
Coolant Fed
Coolant Through
Number of Coolant Holes
2
Number of Inserts
2
Flanged Shank
Yes
Flute Type
Slow Spiral
ISO Number
TCF2219R2SLR150G
Shank Type - Machining
Round with Flat and Side Lock
Measurement System
Fractional Inch

Description

Indexable Insert Drill, 2xD, Max. Drilling Depth 114.68mm, TCF2219R2SLR150G, TCF, Coolant Through
