  11. Indexable Insert Drill, 1-1/4", TCF

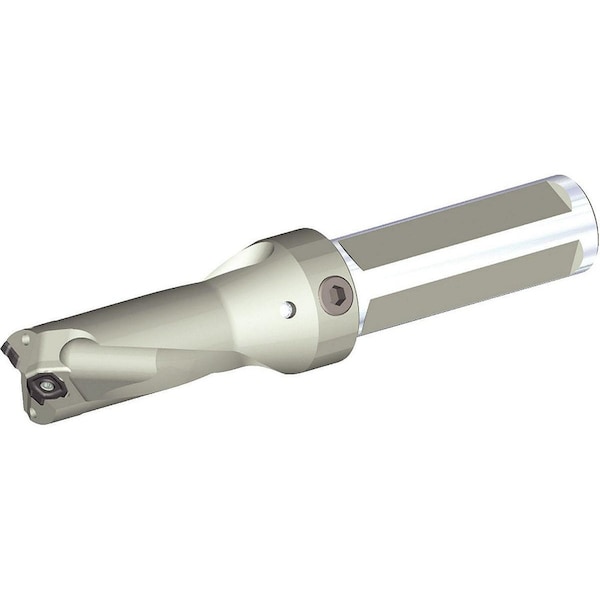

Widia Indexable Insert Drill, 1-1/4", TCF TCF1031R2SLR125D - main

Indexable Insert Drill, 1-1/4", TCF

  • Mfr # TCF1031R2SLR125D

  • Zoro # G3750702

product price: $493.99
/ea
Free Shipping & Returns

Key Features

Diameter
1-1/4"
Ratio
2xD
Mounting Style
Screw Clamp
Shank Length
60.00mm
Shank Dia.
1-1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF1031R2SLR125D
Zoro #
G3750702
UPC #
4050839887071
Country of Origin
Bulgaria

Dimensions

Diameter
1-1/4"
Shank Length
60.00mm
Shank Dia.
1-1/4 in
Overall Length
144.51mm
Depth x Dia. Ratio
2xD
Max. Drilling Depth
53.32mm
Flute Length
79.50mm
Min. Drill Dia.
26.19mm
Max. Drill Dia.
27.19mm

Details

Item
Indexable Insert Drill
Ratio
2xD
Mounting Style
Screw Clamp
Cutting Direction
Right Hand
Flanged Shank
Yes
Spiral Direction
Right Hand
Flute Type
Slow Spiral
Number of Coolant Holes
2
ANSI Code
TCF1031R2SLR125D
Shank Type - Machining
Round with Flat and Side Lock
Number of Inserts
2
Coolant Fed
Coolant Through
Central Insert Style
TCF
Toolholder Style
TCF
ISO Number
TCF1031R2SLR125D
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset
Measurement System
Fractional Inch

Description

Indexable Insert Drill, 2xD, Max. Drilling Depth 53.32mm, TCF1031R2SLR125D, TCF, Coolant Through
