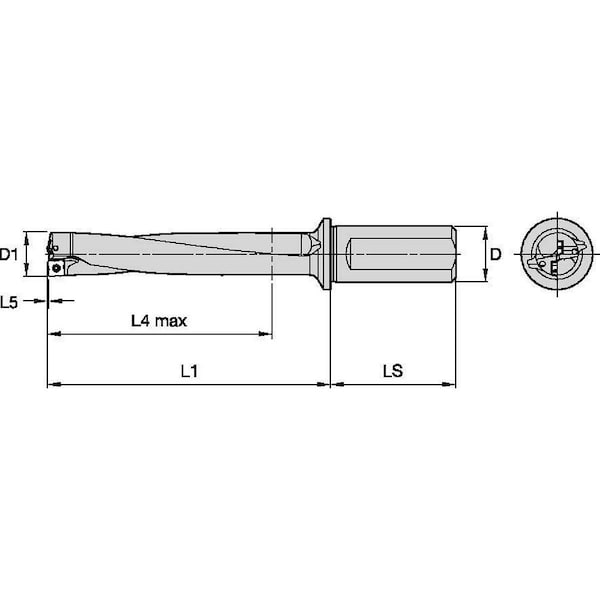

Widia Indexable Insert Drill, 1-1/4", TCF TCF1188R5SLR125E - main

Indexable Insert Drill, 1-1/4", TCF

  • Mfr # TCF1188R5SLR125E

  • Zoro # G3779025

product price: $735.99
/ea
Free Shipping & Returns

Key Features

Diameter
1-1/4"
Ratio
5xD
Shank Dia.
1-1/4 in
Overall Length
9.6114 in
Cutting Direction
Right Hand
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF1188R5SLR125E
Zoro #
G3779025
UPC #
4050839894635
Country of Origin
Bulgaria

Dimensions

Diameter
1-1/4"
Shank Dia.
1-1/4 in
Overall Length
9.6114 in
Shank Length
2.3622 in
Depth x Dia. Ratio
5xD
Flute Length
7.0520 in
Min. Drill Dia.
1-3/16 in
Max. Drilling Depth
5.9830 in

Details

Item
Indexable Insert Drill
Ratio
5xD
Cutting Direction
Right Hand
Mounting Style
Screw Clamp
Coolant Fed
Coolant Through
ANSI Code
TCF1188R5SLR125E
Flute Type
Slow Spiral
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit
Toolholder Style
TCF
Flanged Shank
Yes
Central Insert Style
TCF
Shank Type - Machining
Round with Flat and Side Lock
Number of Coolant Holes
2
Spiral Direction
Right Hand
Number of Inserts
2
ISO Number
TCF1188R5SLR125E
Measurement System
Fractional Inch

Description

Indexable Insert Drill, 5xD, Max. Drilling Depth 5.9830 in, TCF1188R5SLR125E, TCF, Coolant Through
