  11. Indexable Insert Drill, 1-1/4", TCF
Widia Indexable Insert Drill, 1-1/4", TCF TCF1219R3SLR125E - main

Indexable Insert Drill, 1-1/4", TCF

  • Mfr # TCF1219R3SLR125E

  • Zoro # G3777345

product price: $581.99
/ea
Free Shipping & Returns

Key Features

Diameter
1-1/4"
Ratio
3xD
Shank Length
60.00mm
Shank Dia.
1-1/4 in
Mounting Style
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF1219R3SLR125E
Zoro #
G3777345
UPC #
4050839893195
Country of Origin
Bulgaria

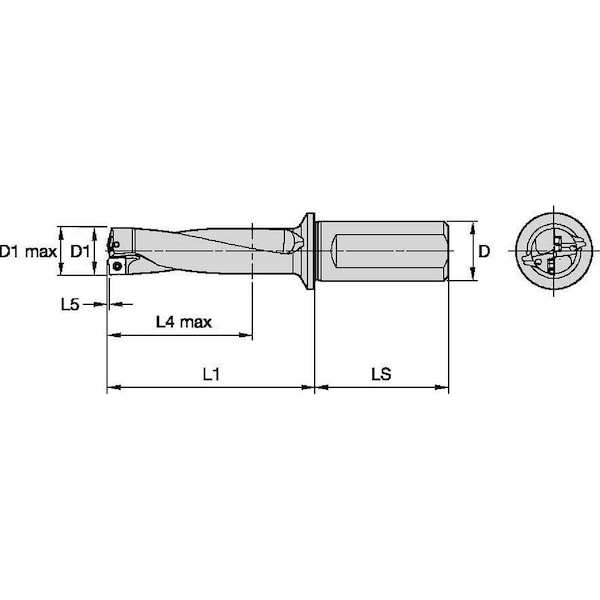

Dimensions

Diameter
1-1/4"
Shank Length
60.00mm
Shank Dia.
1-1/4 in
Overall Length
186.88mm
Min. Drill Dia.
30.96mm
Depth x Dia. Ratio
3xD
Flute Length
121.90mm
Max. Drilling Depth
94.01mm
Max. Drill Dia.
31.96mm

Details

Item
Indexable Insert Drill
Ratio
3xD
Mounting Style
Screw Clamp
Cutting Direction
Right Hand
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset
Number of Coolant Holes
2
Shank Type - Machining
Round with Flat and Side Lock
Flanged Shank
Yes
Spiral Direction
Right Hand
Number of Inserts
2
Central Insert Style
TCF
Toolholder Style
TCF
Coolant Fed
Coolant Through
Flute Type
Slow Spiral
ANSI Code
TCF1219R3SLR125E
ISO Number
TCF1219R3SLR125E
Measurement System
Fractional Inch

Description

Indexable Insert Drill, 3xD, Max. Drilling Depth 94.01mm, TCF1219R3SLR125E, TCF, Coolant Through
