  11. Indexable Insert Drill, 1", TCF

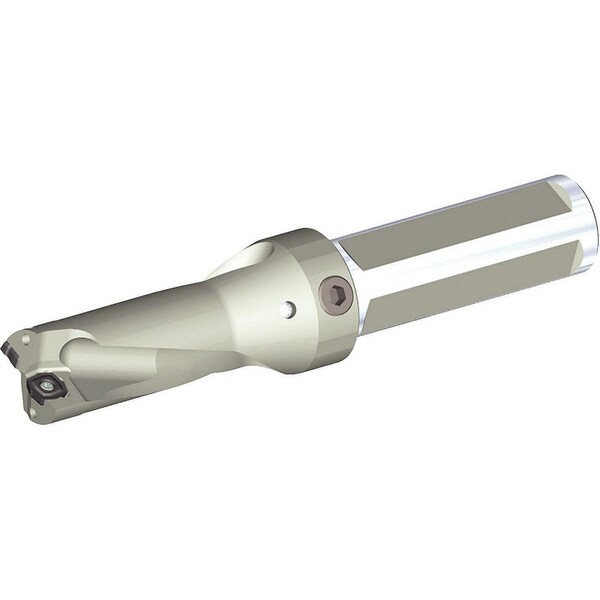

Widia Indexable Insert Drill, 1", TCF TCF0781R2SLR100C - main

Indexable Insert Drill, 1", TCF

  • Mfr # TCF0781R2SLR100C

  • Zoro # G3777424

product price: $524.99
/ea
Free Shipping & Returns

Key Features

Diameter
1"
Ratio
2xD
Overall Length
122.22mm
Mounting Style
Screw Clamp
Shank Dia.
1 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF0781R2SLR100C
Zoro #
G3777424
UPC #
4050841104234
Country of Origin
Bulgaria

Dimensions

Diameter
1"
Overall Length
122.22mm
Shank Dia.
1 in
Shank Length
56.00mm
Depth x Dia. Ratio
2xD
Flute Length
62.20mm
Min. Drill Dia.
19.84mm
Max. Drilling Depth
40.39mm
Max. Drill Dia.
20.34mm

Details

Item
Indexable Insert Drill
Ratio
2xD
Mounting Style
Screw Clamp
Cutting Direction
Right Hand
Flanged Shank
Yes
ANSI Code
TCF0781R2SLR100C
Central Insert Style
TCF
Flute Type
Slow Spiral
ISO Number
TCF0781R2SLR100C
Number of Inserts
2
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset
Toolholder Style
TCF
Shank Type - Machining
Round with Flat and Side Lock
Spiral Direction
Right Hand
Coolant Fed
Coolant Through
Number of Coolant Holes
2
Measurement System
Fractional Inch

Description

Indexable Insert Drill, 2xD, Max. Drilling Depth 40.39mm, TCF0781R2SLR100C, TCF, Coolant Through
