  11. Indexable Insert Drill, 1", TCF

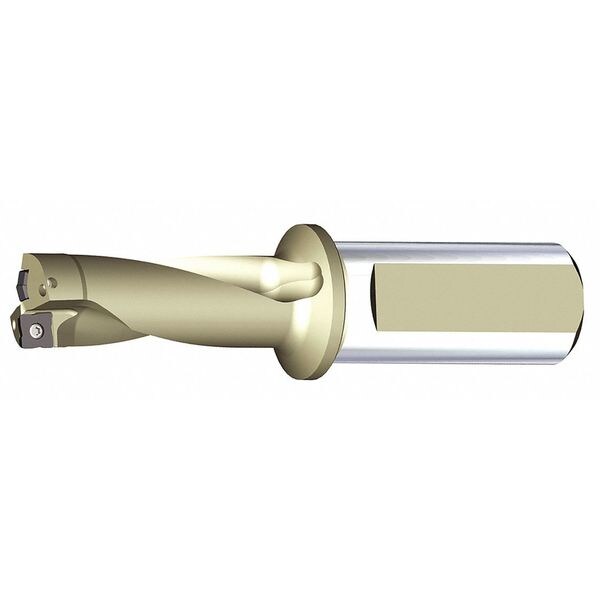

Widia Indexable Insert Drill, 1", TCF TCF0844R2SLR100C - main

Indexable Insert Drill, 1", TCF

  • Mfr # TCF0844R2SLR100C

  • Zoro # G3822565

product price: $502.99
/ea
Free Shipping & Returns

Key Features

Diameter
1"
Mounting Style
Screw Clamp
ISO Number
TCF0844R2SLR100C
Cutting Direction
Right Hand
Body Length
2.2047"
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF0844R2SLR100C
Zoro #
G3822565
UPC #
4050841104418
Country of Origin
Bulgaria

Dimensions

Diameter
1"
Body Length
2.2047"
Overall Length
127.22mm
Drilling Depth
1.7180"
Shank Length
56.00mm
Insert Seat Size
C
Shank Dia.
1 in
Max. Drill Dia.
21.94mm
Max. Drilling Depth
43.64mm
Seat Size
C
Flute Length
67.20mm
Depth x Dia. Ratio
2xD
Min. Drill Dia.
21.44mm

Details

Item
Indexable Insert Drill
Mounting Style
Screw Clamp
ISO Number
TCF0844R2SLR100C
Cutting Direction
Right Hand
Shank Type
Straight
Ratio
2xD
Central Insert Style
TCF
Flute Type
Slow Spiral
Shank Type - Machining
Round with Flat and Side Lock
ANSI Code
TCF0844R2SLR100C
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset
Flanged Shank
Yes
Spiral Direction
Right Hand
Coolant Fed
Coolant Through
Number of Inserts
2
Number of Coolant Holes
2
Toolholder Style
TCF

Description

Indexable Insert Drill, Max. Drill Dia. 21.94mm, Seat Size C, 2xD, Max. Drilling Depth 43.64mm
