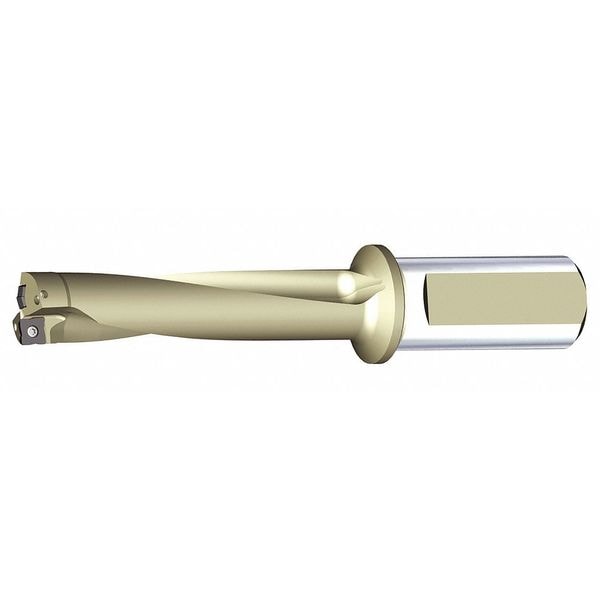

Widia Indexable Insert Drill, 1", TCF TCF0844R4SLR100C - main

Indexable Insert Drill, 1", TCF

  • Mfr # TCF0844R4SLR100C

  • Zoro # G3777275

product price: $583.99
/ea
Free Shipping & Returns

Key Features

Diameter
1"
Ratio
4xD
Shank Length
56.00mm
Overall Length
170.10mm
Cutting Direction
Right Hand
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF0844R4SLR100C
Zoro #
G3777275
UPC #
4050841105675
Country of Origin
Germany

Dimensions

Diameter
1"
Shank Length
56.00mm
Overall Length
170.10mm
Shank Dia.
1 in
Max. Drill Dia.
21.94mm
Flute Length
110.10mm
Seat Size
C
Max. Drilling Depth
86.51mm
Min. Drill Dia.
21.44mm
Depth x Dia. Ratio
4xD

Details

Item
Indexable Insert Drill
Ratio
4xD
Cutting Direction
Right Hand
Mounting Style
Screw Clamp
Number of Inserts
2
ISO Number
TCF0844R4SLR100C
Central Insert Style
TCF
Spiral Direction
Right Hand
Number of Coolant Holes
2
Flute Type
Slow Spiral
Toolholder Style
TCF
Shank Type - Machining
Round with Flat and Side Lock
Coolant Fed
Coolant Through
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset
ANSI Code
TCF0844R4SLR100C
Flanged Shank
Yes

Description

Indexable Insert Drill, Max. Drill Dia. 21.94mm, Seat Size C, 4xD, Max. Drilling Depth 86.51mm
