  11. Indexable Insert Drill, 1", TCF

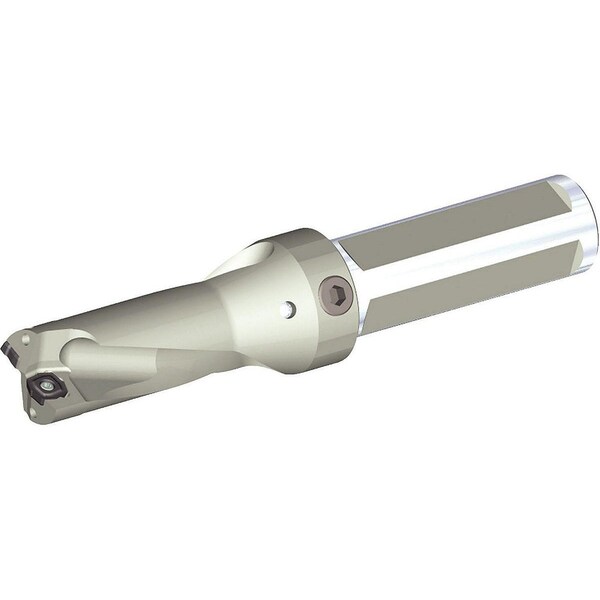

Widia Indexable Insert Drill, 1", TCF TCF0938R2SLR100C - main

Indexable Insert Drill, 1", TCF

  • Mfr # TCF0938R2SLR100C

  • Zoro # G3779000

product price: $529.99
/ea
Free Shipping & Returns

Key Features

Diameter
1"
Ratio
2xD
Cutting Direction
Right Hand
Overall Length
134.68mm
Mounting Style
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF0938R2SLR100C
Zoro #
G3779000
UPC #
4050841104685
Country of Origin
Bulgaria

Dimensions

Diameter
1"
Overall Length
134.68mm
Shank Length
56.00mm
Shank Dia.
1 in
Min. Drill Dia.
23.83mm
Max. Drilling Depth
48.47mm
Flute Length
74.70mm
Depth x Dia. Ratio
2xD
Max. Drill Dia.
24.32mm

Details

Item
Indexable Insert Drill
Ratio
2xD
Cutting Direction
Right Hand
Mounting Style
Screw Clamp
Number of Coolant Holes
2
Flanged Shank
Yes
ANSI Code
TCF0938R2SLR100C
Shank Type - Machining
Round with Flat and Side Lock
Flute Type
Slow Spiral
Number of Inserts
2
ISO Number
TCF0938R2SLR100C
Coolant Fed
Coolant Through
Spiral Direction
Right Hand
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset
Toolholder Style
TCF
Central Insert Style
TCF
Measurement System
Fractional Inch

Description

Indexable Insert Drill, 2xD, Max. Drilling Depth 48.47mm, TCF0938R2SLR100C, TCF, Coolant Through
