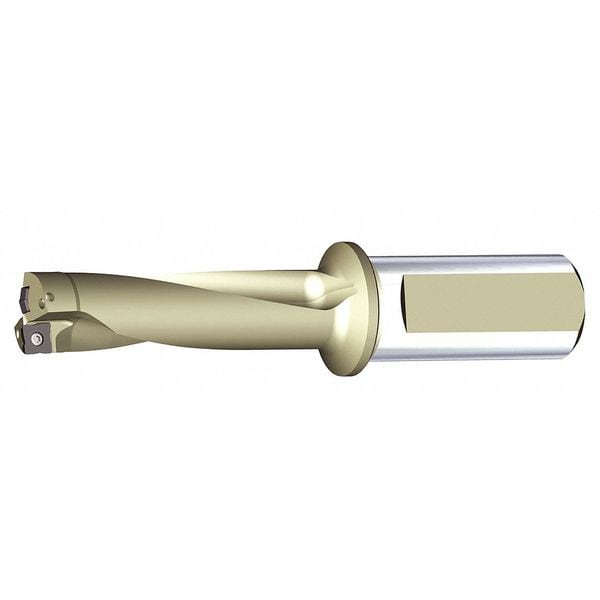

Widia Indexable Insert Drill, 1", TCF TCF0969R3SLR100D - main

Indexable Insert Drill, 1", TCF

  • Mfr # TCF0969R3SLR100D

  • Zoro # G3921399

product price: $553.99
/ea
Free Shipping & Returns

Key Features

Diameter
1"
Cutting Direction
Right Hand
Mounting Style
Screw Clamp
ISO Number
TCF0969R3SLR100D
Overall Length
159.36mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF0969R3SLR100D
Zoro #
G3921399
UPC #
4050839887521
Country of Origin
Bulgaria

Dimensions

Diameter
1"
Overall Length
159.36mm
Body Length
2.2047"
Shank Length
56.00mm
Drilling Depth
2.9420"
Shank Dia.
1 in
Insert Seat Size
D
Depth x Dia. Ratio
3xD
Max. Drilling Depth
74.73mm
Min. Drill Dia.
24.61mm
Max. Drill Dia.
25.61mm
Seat Size
D
Flute Length
99.30mm

Details

Item
Indexable Insert Drill
Cutting Direction
Right Hand
Mounting Style
Screw Clamp
ISO Number
TCF0969R3SLR100D
Shank Type
Straight
Ratio
3xD
Spiral Direction
Right Hand
Number of Coolant Holes
2
Flute Type
Slow Spiral
Toolholder Style
TCF
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset
Shank Type - Machining
Round with Flat and Side Lock
ANSI Code
TCF0969R3SLR100D
Coolant Fed
Coolant Through
Number of Inserts
2
Flanged Shank
Yes
Central Insert Style
TCF

Description

Indexable Insert Drill, Max. Drill Dia. 25.61mm, Seat Size D, 3xD, Max. Drilling Depth 74.73mm
