  11. Indexable Insert Drill, 1", TCF

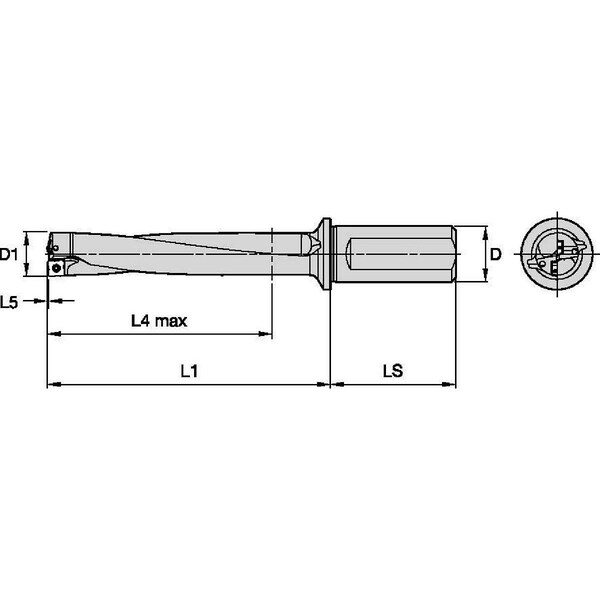

Widia Indexable Insert Drill, 1", TCF TCF0969R5SLR100D - main

Indexable Insert Drill, 1", TCF

  • Mfr # TCF0969R5SLR100D

  • Zoro # G3750395

product price: $651.99
/ea
Free Shipping & Returns

Key Features

Diameter
1"
Ratio
5xD
Shank Dia.
1 in
Mounting Style
Screw Clamp
Shank Length
2.2047 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF0969R5SLR100D
Zoro #
G3750395
UPC #
4050839888962
Country of Origin
Bulgaria

Dimensions

Diameter
1"
Shank Dia.
1 in
Shank Length
2.2047 in
Overall Length
8.2119 in
Max. Drilling Depth
4.8800 in
Min. Drill Dia.
31/32 in
Flute Length
5.8490 in
Depth x Dia. Ratio
5xD

Details

Item
Indexable Insert Drill
Ratio
5xD
Mounting Style
Screw Clamp
Cutting Direction
Right Hand
Number of Inserts
2
Central Insert Style
TCF
Coolant Fed
Coolant Through
Flanged Shank
Yes
Number of Coolant Holes
2
ISO Number
TCF0969R5SLR100D
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit
ANSI Code
TCF0969R5SLR100D
Flute Type
Slow Spiral
Spiral Direction
Right Hand
Shank Type - Machining
Round with Flat and Side Lock
Toolholder Style
TCF
Measurement System
Fractional Inch

Description

Indexable Insert Drill, 5xD, Max. Drilling Depth 4.8800 in, TCF0969R5SLR100D, TCF, Coolant Through
