  11. Indexable Insert Drill, 1", TCF

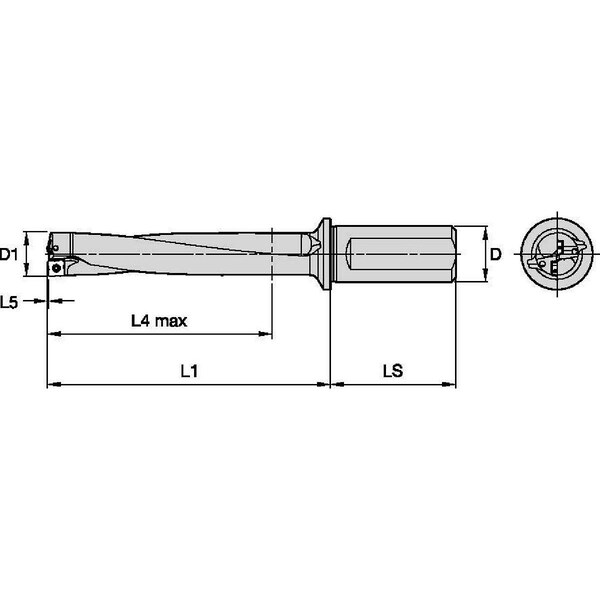

Widia Indexable Insert Drill, 1", TCF TCF0984R5SLR100D - main

Indexable Insert Drill, 1", TCF

  • Mfr # TCF0984R5SLR100D

  • Zoro # G3760721

product price: $679.99
/ea
Free Shipping & Returns

Key Features

Diameter
1"
Ratio
5xD
Shank Dia.
1 in
Shank Length
2.2047 in
Mounting Style
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF0984R5SLR100D
Zoro #
G3760721
UPC #
4050839889051
Country of Origin
Germany

Dimensions

Diameter
1"
Shank Dia.
1 in
Shank Length
2.2047 in
Overall Length
8.3024 in
Max. Drilling Depth
4.9560 in
Depth x Dia. Ratio
5xD
Flute Length
5.9400 in
Min. Drill Dia.
63/64 in

Details

Item
Indexable Insert Drill
Ratio
5xD
Mounting Style
Screw Clamp
Cutting Direction
Right Hand
Coolant Fed
Coolant Through
Central Insert Style
TCF
Spiral Direction
Right Hand
Number of Coolant Holes
2
Flute Type
Slow Spiral
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit
Toolholder Style
TCF
Shank Type - Machining
Round with Flat and Side Lock
Flanged Shank
Yes
Number of Inserts
2
ANSI Code
TCF0984R5SLR100D
ISO Number
TCF0984R5SLR100D
Measurement System
Fractional Inch

Description

Indexable Insert Drill, 5xD, Max. Drilling Depth 4.9560 in, TCF0984R5SLR100D, TCF, Coolant Through
