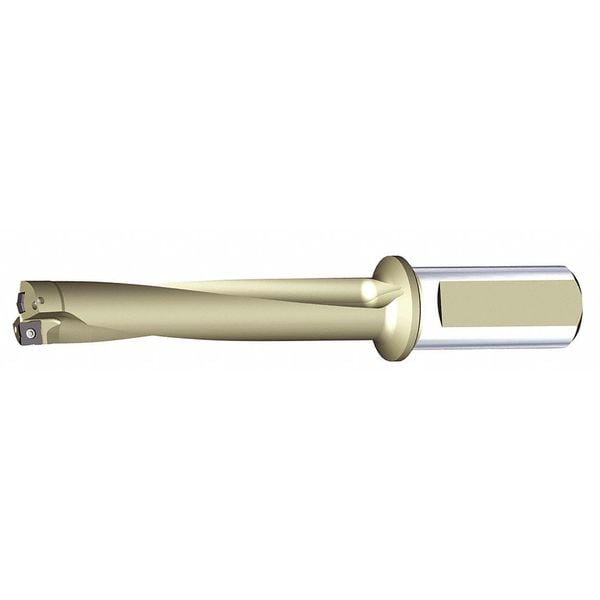

Widia Indexable Insert Drill, 1", TCF TCF1000R5SLR100D - main

Indexable Insert Drill, 1", TCF

  • Mfr # TCF1000R5SLR100D

  • Zoro # G3923130

product price: $660.99
/ea
Free Shipping & Returns

Key Features

Diameter
1"
ISO Number
TCF1000R5SLR100D
Mounting Style
Screw Clamp
Cutting Direction
Right Hand
Overall Length
8.3989 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF1000R5SLR100D
Zoro #
G3923130
UPC #
4050839889143
Country of Origin
Bulgaria

Dimensions

Diameter
1"
Overall Length
8.3989 in
Body Length
2.2047"
Drilling Depth
5.0360"
Insert Seat Size
D
Shank Dia.
1 in
Shank Length
2.2047 in
Depth x Dia. Ratio
5xD
Min. Drill Dia.
1 in
Seat Size
D
Flute Length
6.0360 in
Max. Drilling Depth
5.0360 in

Details

Item
Indexable Insert Drill
ISO Number
TCF1000R5SLR100D
Mounting Style
Screw Clamp
Cutting Direction
Right Hand
Shank Type
Straight
Ratio
5xD
Spiral Direction
Right Hand
Flanged Shank
Yes
Central Insert Style
TCF
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit
Number of Coolant Holes
2
Flute Type
Slow Spiral
Toolholder Style
TCF
Coolant Fed
Coolant Through
Number of Inserts
2
Shank Type - Machining
Round with Flat and Side Lock
ANSI Code
TCF1000R5SLR100D

Description

Indexable Insert Drill, Seat Size D, 5xD, Max. Drilling Depth 5.0360 in
