Widia Indexable Insert Drill, 25.00mm, TCF TCF150R2SLR25MB - main

Indexable Insert Drill, 25.00mm, TCF

  • Mfr # TCF150R2SLR25MB

  • Zoro # G3777670

product price: $428.99
/ea
Free Shipping & Returns

Key Features

Diameter
25.00mm
Ratio
2xD
Mounting Style
Screw Clamp
Shank Dia.
25.00mm
Overall Length
107.55mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF150R2SLR25MB
Zoro #
G3777670
UPC #
4050841097499
Country of Origin
Bulgaria

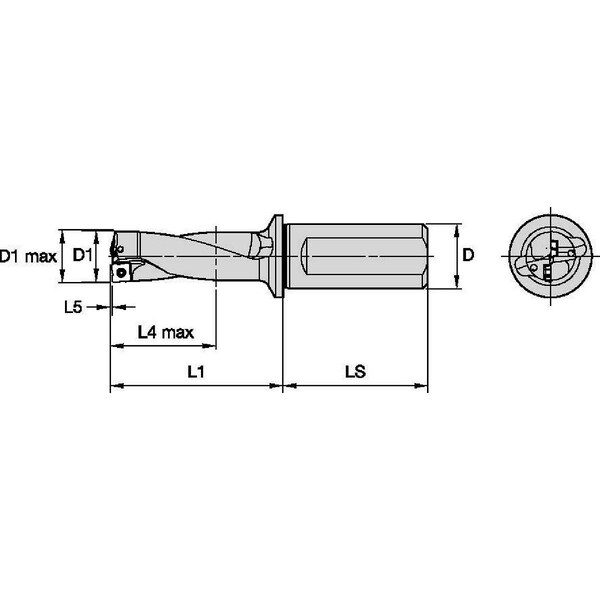

Dimensions

Diameter
25.00mm
Shank Dia.
25.00mm
Overall Length
107.55mm
Shank Length
56.00mm
Min. Drill Dia.
15.00mm
Depth x Dia. Ratio
2xD
Max. Drilling Depth
30.55mm
Flute Length
47.00mm
Max. Drill Dia.
15.50mm

Details

Item
Indexable Insert Drill
Ratio
2xD
Mounting Style
Screw Clamp
Cutting Direction
Right Hand
Number of Coolant Holes
2
Spiral Direction
Right Hand
Central Insert Style
TCF
Coolant Fed
Coolant Through
Standards
ISO 9766
Flanged Shank
Yes
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset
Number of Inserts
2
ANSI Code
TCF150R2SLR25MB
Flute Type
Slow Spiral
Toolholder Style
TCF
ISO Number
TCF150R2SLR25MB
Shank Type - Machining
Round with Flat and Side Lock
Measurement System
Metric

Description

Indexable Insert Drill, 2xD, Max. Drilling Depth 30.55mm, TCF150R2SLR25MB, TCF, Coolant Through
