  11. Indexable Insert Drill, 25.00mm, TCF

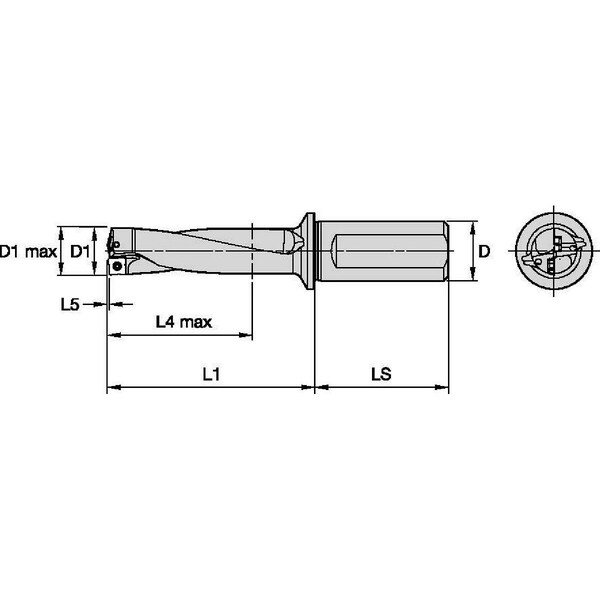

Widia Indexable Insert Drill, 25.00mm, TCF TCF175R3SLR25MB - main

Indexable Insert Drill, 25.00mm, TCF

  • Mfr # TCF175R3SLR25MB

  • Zoro # G3778930

product price: $536.99
/ea
Free Shipping & Returns

Key Features

Diameter
25.00mm
Ratio
3xD
Shank Dia.
25.00mm
Cutting Direction
Right Hand
Mounting Style
Screw Clamp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TCF175R3SLR25MB
Zoro #
G3778930
UPC #
4050841098847
Country of Origin
Bulgaria

Dimensions

Diameter
25.00mm
Shank Dia.
25.00mm
Shank Length
56.00mm
Overall Length
133.13mm
Min. Drill Dia.
17.50mm
Flute Length
72.40mm
Depth x Dia. Ratio
3xD
Max. Drilling Depth
53.13mm
Max. Drill Dia.
18.00mm
Seat Size
B

Details

Item
Indexable Insert Drill
Ratio
3xD
Cutting Direction
Right Hand
Mounting Style
Screw Clamp
Coolant Fed
Coolant Through
Spiral Direction
Right Hand
Central Insert Style
TCF
Flute Type
Slow Spiral
ISO Number
TCF175R3SLR25MB
Drilling Application
45 Degrees Corner, Blind Hole, Chain, Convex, Cross Hole, Half Cylindrical, Inclined Entry, Inclined Exit, X-Offset
Number of Coolant Holes
2
Number of Inserts
2
Standards
ISO 9766
Toolholder Style
TCF
Shank Type - Machining
Round with Flat and Side Lock
ANSI Code
TCF175R3SLR25MB
Flanged Shank
Yes
Measurement System
Metric

Description

Indexable Insert Drill, 3xD, Max. Drilling Depth 53.13mm, TCF175R3SLR25MB, TCF, Coolant Through
